Nissan Altima 2007-2012 Service Manual: Air cleaner and air duct

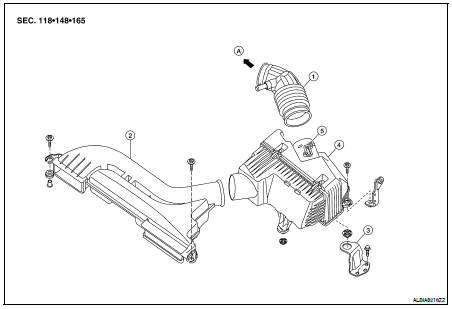

Removal and Installation

1. Air duct hose

2. Front air duct

3. Air cleaner mounting bracket

4. Air cleaner assembly

5. Mass air flow sen

A. To electric throttle control actuator

REMOVAL

1. Remove front air duct.

2. Disconnect the air duct hose clamps at the electric throttle control actuator and the air cleaner assembly.

3. Remove air duct hose.

4. Disconnect the mass air flow sensor

5. Remove mass air flow sensor from air cleaner assembly, as necessary.

CAUTION: Handle the mass air flow sensor with care: • Do not shock it.

• Do not disassemble it.

• Do not touch the internal sensor.

6. Remove the air cleaner assembly, as necessary.

INSTALLATION

Installation is in the reverse order of removal.

    Intake manifold
    Removal and Installation 1. Intake manifold 2. Rubber seal 3. Intake manifold adapter 4. Gasket 5. Electric throttle control actuator 6. Rubber seal 7. PCV hose 8. EVAP canister purge volume ...
