Nissan Altima (L32) 2007-2012 Service Manual: B1017 – b1022 occupant classification system

Description

DTC B1017 – B1022 OCCUPANT CLASSIFICATION SYSTEM (OCS)

The occupant classification system control unit is wired to the air bag diagnosis sensor unit. The air bag diagnosis sensor unit will monitor the occupant classification system for control unit and sensor mat failures and interuptions in communication between the OCS control unit and the air bag diagnosis sensor unit.

PART LOCATION

Refer to SRC-7, "SRS Component Parts Location".

DTC Logic

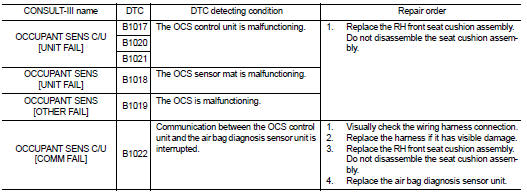

DTC DETECTION LOGIC

With CONSULT-lll

Without CONSULT-lll

DTC CONFIRMATION PROCEDURE (With CONSULT-lll)

1.INSPECTION START

Turn ignition switch ON.

>> GO TO 2.

2.CHECK SELF-DIAG RESULT

Check for the DTC on CONSULT-lll.

Is the DTC detected? YES >> Refer to SRC-55, "Diagnosis Procedure (Component Diagnosis)".

NO >> Inspection End.

DTC CONFIRMATION PROCEDURE (Without CONSULT-lll)

NOTE: SRS will not enter diagnosis mode if no malfunction is detected in user mode.

1.IGNITION SWITCH

Turn ignition switch ON.

>> GO TO 2

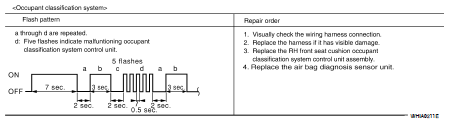

2.IGNITION SWITCH

After air bag warning lamp lights for 7 seconds, turn ignition switch OFF within 1 second.

>> GO TO 3

3.WAIT TIME

Wait more than 3 seconds.

>> GO TO 4

4.REPEAT STEPS

Repeat steps 1 to 3 twice.

>> GO TO 5

5.IGNITION SWITCH

Turn ignition switch ON.

>> GO TO 6

6.DIAGNOSTIC MODE

SRS system is now in diagnostic mode and AIR BAG warning lamp flashes. Refer to SRC-7, "SRS Component Parts Location".

>> END

Diagnosis Procedure (Component Diagnosis)

Recheck SRS after each replacement.

1.DTC

Does CONSULT-III indicate B1022? YES or NO

YES >> GO TO 2

NO >> GO TO 4

2.HARNESS CONNECTOR

Is there any visible damage to the connector? YES or NO

YES >> Replace the harness.

NO >> GO TO 3

3.WIRING HARNESS

Is there any visible damage to the harness? YES or NO

YES >> Replace the harness.

NO >> GO TO 4

4.RH FRONT SEAT CUSHION ASSEMBLY

Replace the RH front seat cushion assembly. Refer to SE-23, "Removal and Installation".

>> GO TO 5

5.AIR BAG DIAGNOSIS SENSOR UNIT

Replace the air bag diagnosis sensor unit. Refer to SR-17, "Removal and Installation".

>> END.
