Nissan Altima 2007-2012 Service Manual: BCM (Body control module)

Reference Value

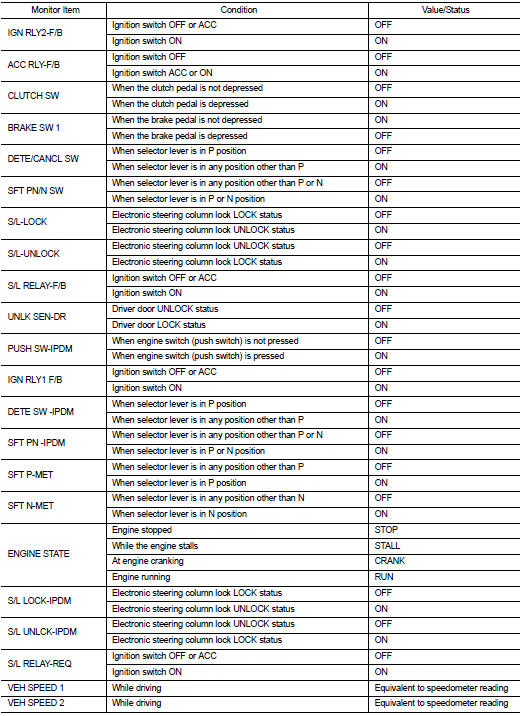

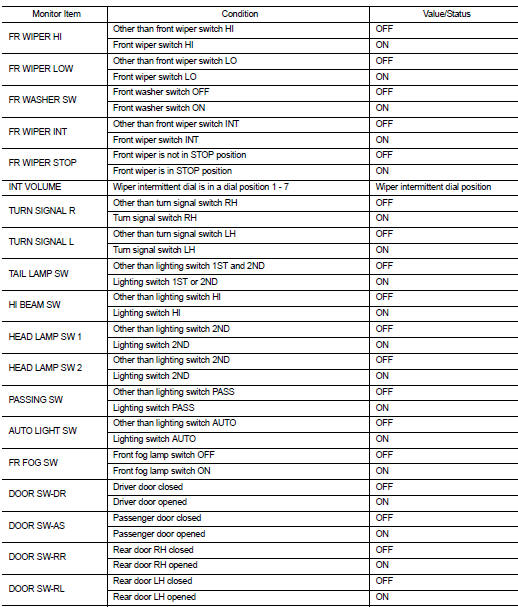

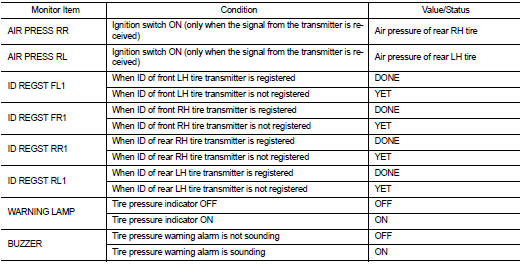

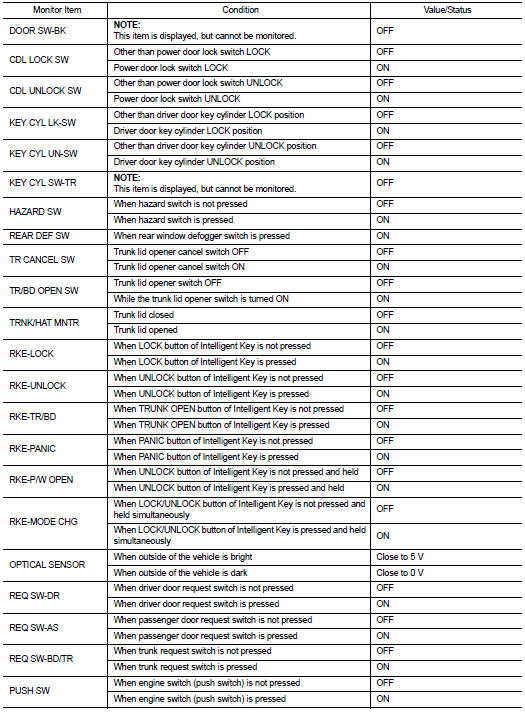

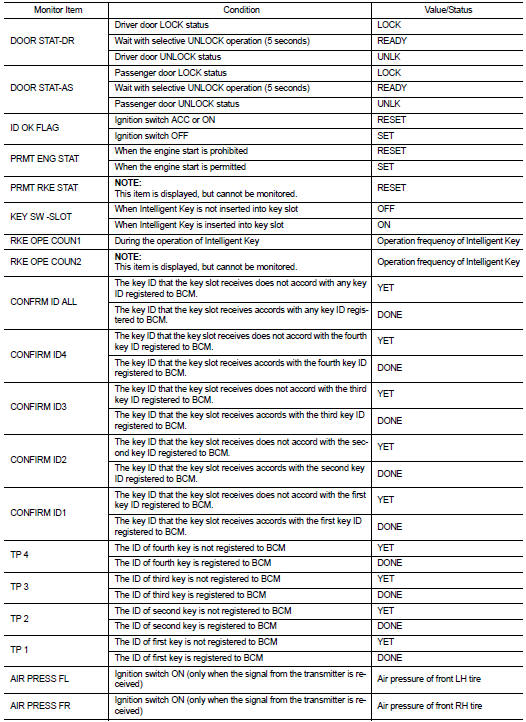

VALUES ON THE DIAGNOSIS TOOL

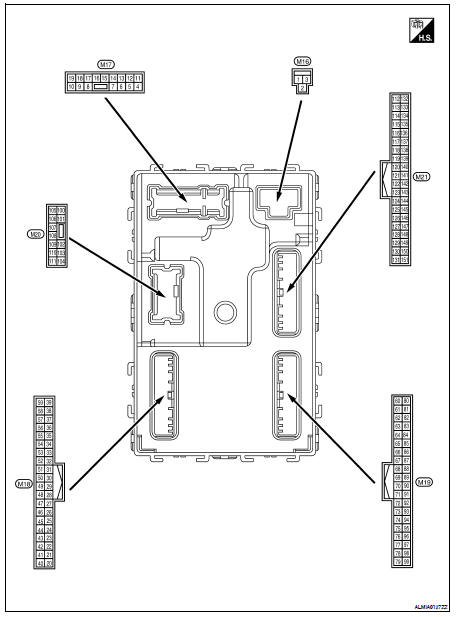

Terminal Layout

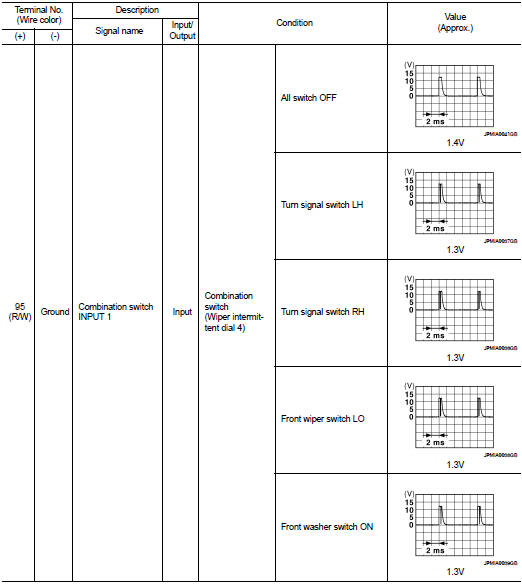

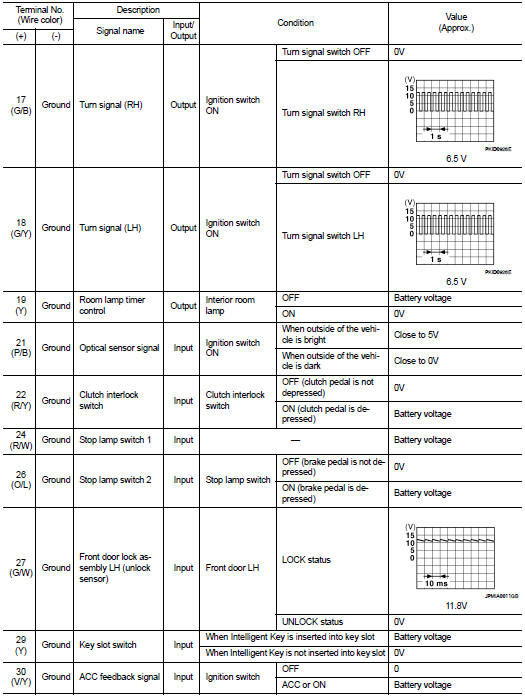

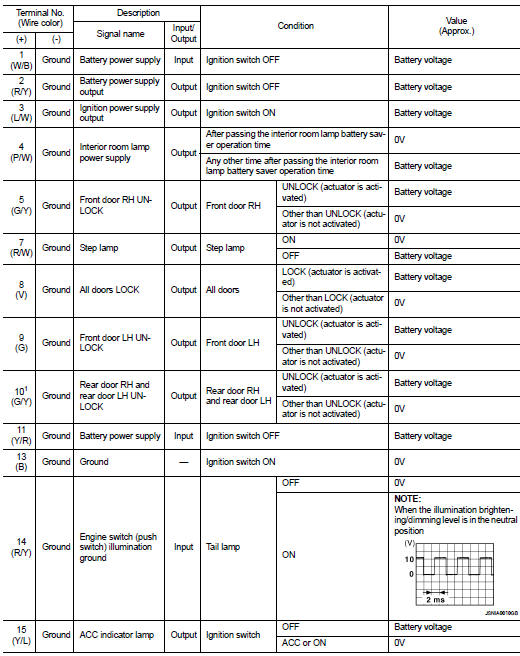

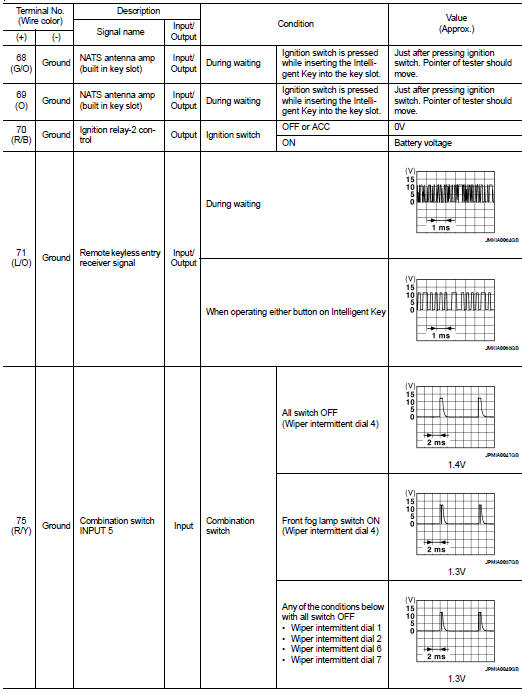

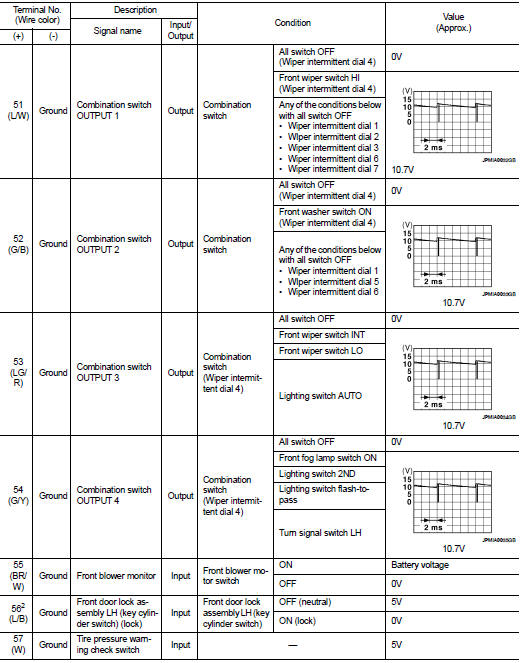

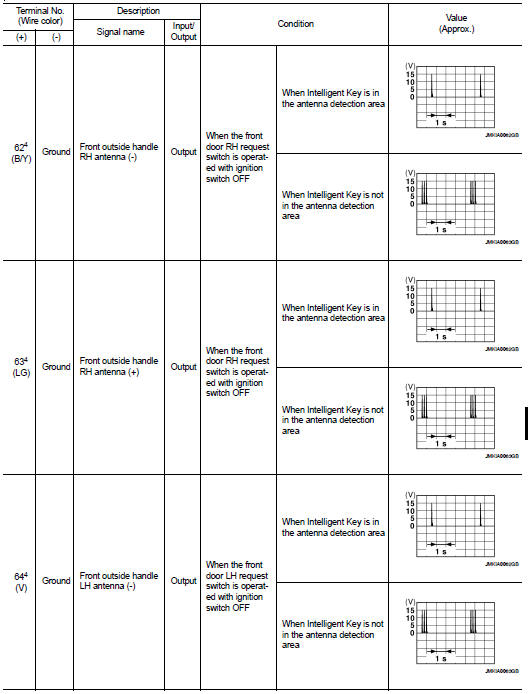

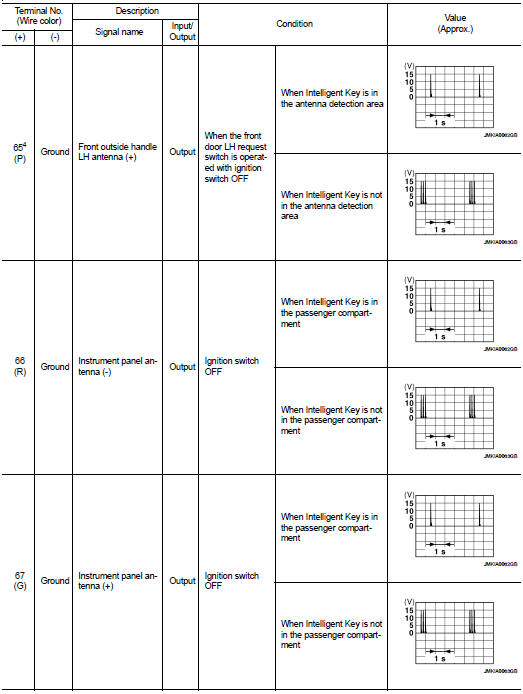

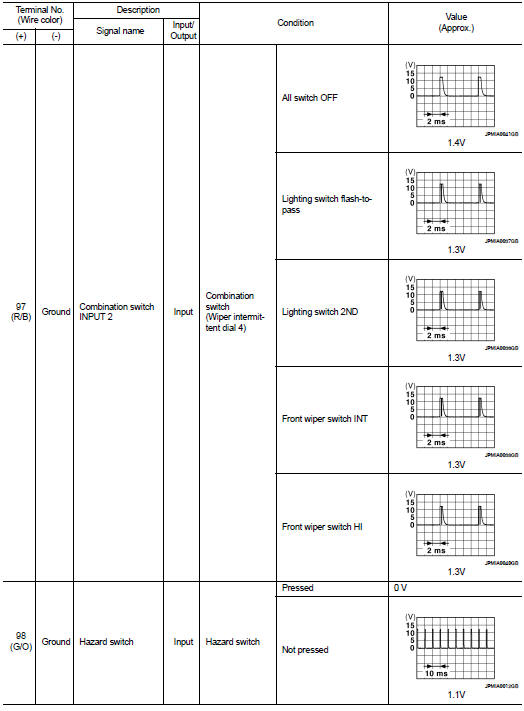

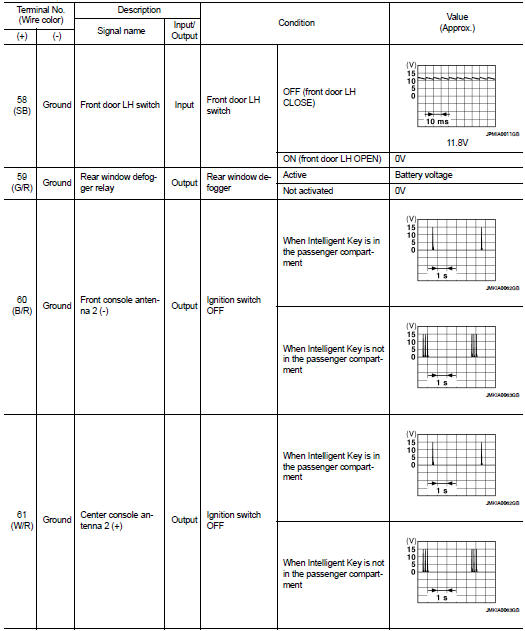

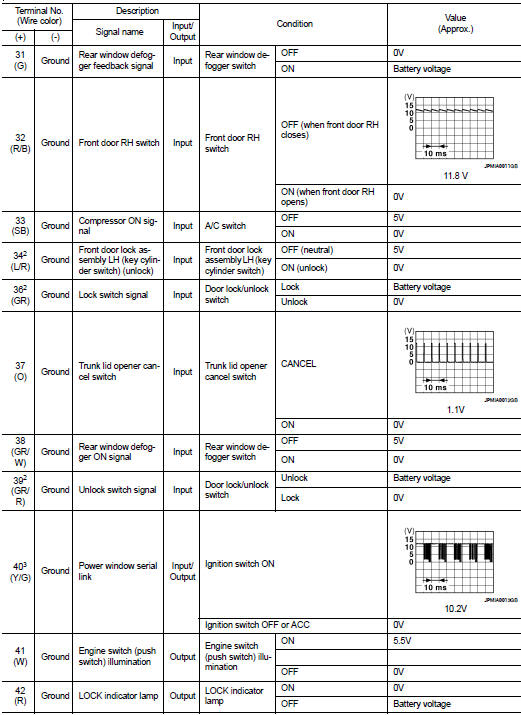

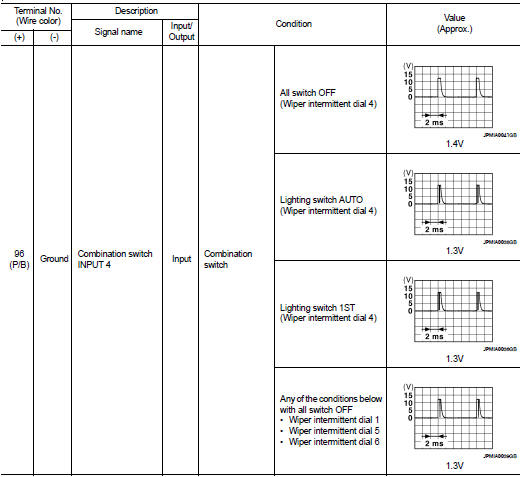

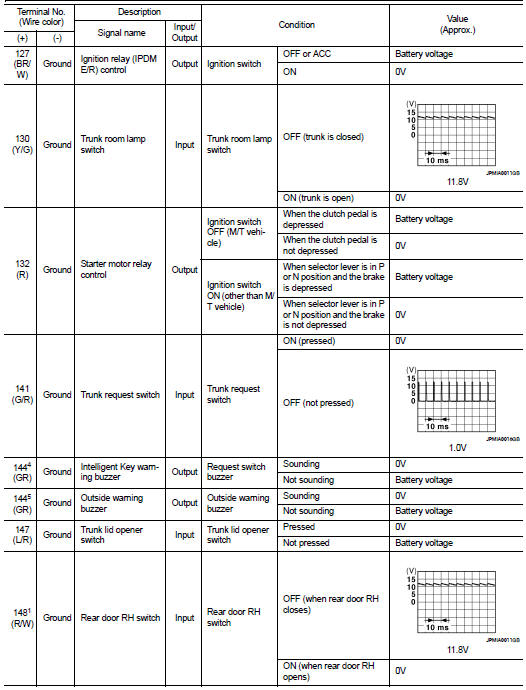

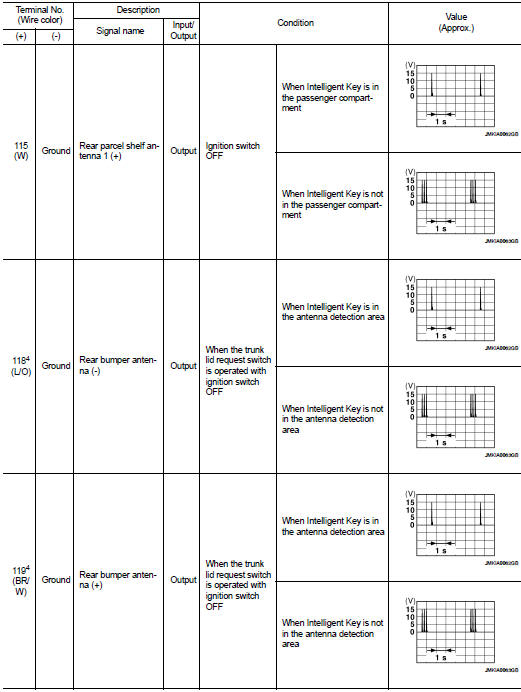

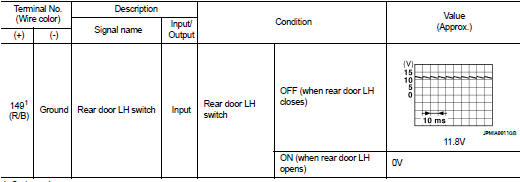

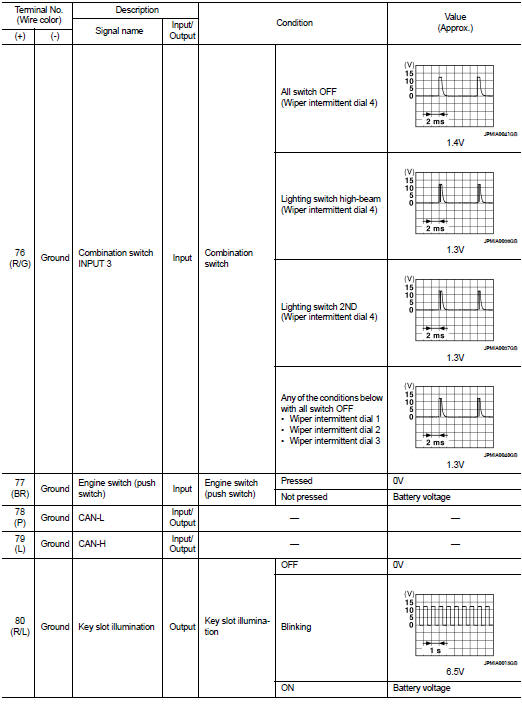

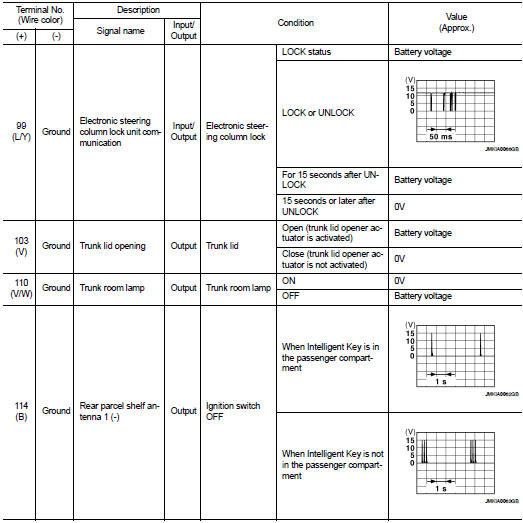

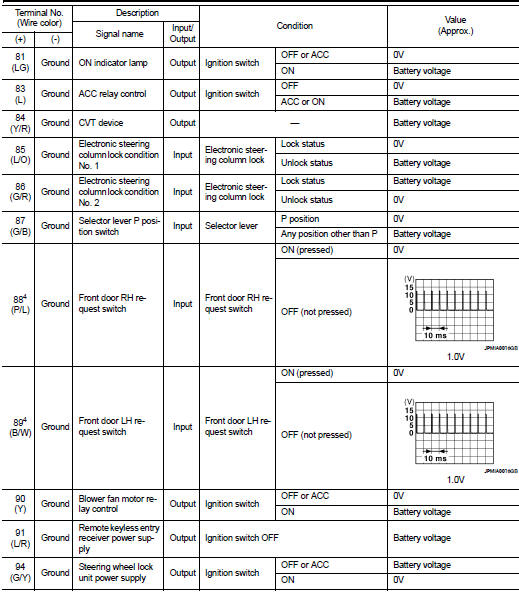

Physical Values

1: Sedan only

2: With LH front window anti-pinch

3: With LH and RH front window anti-pinch

4: With Intelligent Key

5: Without Intelligent Key
