Nissan Altima 2007-2012 Service Manual: Body component parts

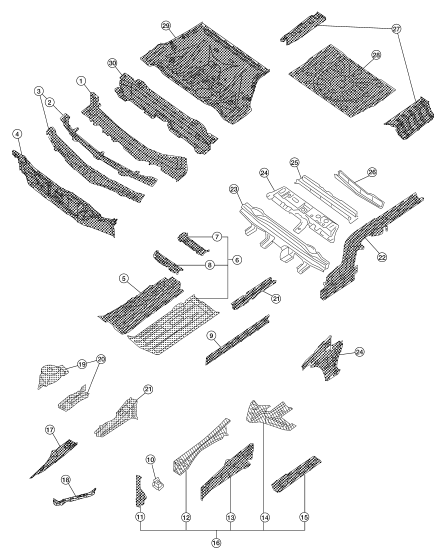

Underbody Component Parts

1. Upper dash assembly

2. Wiper bracket

3. Cowl top assembly

4. Lower dash assembly

5. Center floor assembly

6. Front floor assembly (RH,LH)

7. Rear crossmember (RH, LH)

8. Front crossmember (RH, LH)

9. Inner sill (RH, LH)

10. Front suspension member front nut plate (RH, LH)

11. Radiator core support side (RH, LH)

12. Front side member front assembly (RH, LH)

13. Front side member closing plate (RH, LH)

14. Front side member assembly (RH, LH)

15. Front side member center extension (RH, LH)

16. Front side member (RH, LH)

17. Hoodledge connector (RH, LH)

18. Radiator core support upper (RH, LH)

19. Strut tower (RH, LH)

20. Strut tower assembly (RH, LH)

21. Front side member rear extension (RH. LH)

22. Rear side member assembly (RH, LH)

23. Rear seat crossmember lower

24. Rear seat crossmember upper

25. Rear center crossmember

26. Rear floor rear crossmember

27 Rear floor rear side

28. Rear floor rear

29. Rear floor front

30. Rear floor front extension

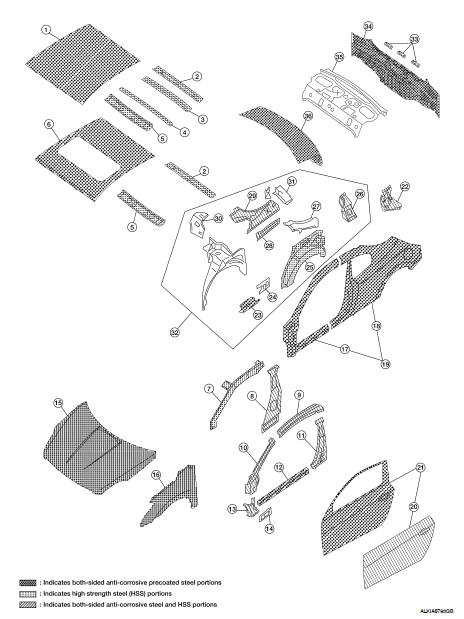

Body Component Parts

1. Roof panel assembly

2. Rear roof rail assembly

3. Center roof bow

4. Front roof bow

5. Front roof rail assembly

6. Sun roof panel assembly

7. Front pillar inner reinforcement (RH, LH)

8. Inner lock pillar (RH, LH)

9. Outer upper roof side rail (RH, LH)

10. Hinge pillar upper reinforcement (RH, LH)

11. Lock pillar reinforcement (RH, LH)

12. Outer sill reinforcement (RH, LH)

13. Hinge pillar lower reinforcement (RH, LH)

14. Front pillar lower reinforcement (RH, LH)

15. Hood assembly

16. Front fender (RH, LH)

17. Front portion of body side outer (RH, LH)

18. Rear fender portion of body side outer (RH, LH)

19. Body side outer (RH, LH)

20. Front door outer (RH, LH)

21. Front door assembly (RH, LH)

22. Rear combination lamp base (RH, LH)

23. Rear outer sill reinforcement (RH, LH)

24. Rear wheel outer front extension (RH, LH)

25. Rear wheel outer RH, LH)

26. Rear pillar inner reinforcement B (RH, LH)

27. Rear pillar inner reinforcement A (RH, LH)

28. Inner rear pillar lower (RH, LH)

29. Rear pillar inner (RH, LH)

30. Rear seat back side support (RH, LH)

31. Rear side upper reinforcement (RH, LH)

32. Rear wheel inner reinforcement assembly (RH, LH)

33. Rear bumper fascia brackets

34. Rear panel assembly

35. Parcel shelf assembly

36. Trunk lid assembly

    Corrosion protection
    Description To provide improved corrosion prevention, the following anti-corrosive measures have been implemented in NISSAN production plants. When repairing or replacing body panels, it is nece ...
