Nissan Altima 2007-2012 Service Manual: C1712 - C1715, C1720 - C1723, C1724 -C1727 Transmitter malfunction

Description

One or more transmitters are malfunctioning internally.

DTC Logic

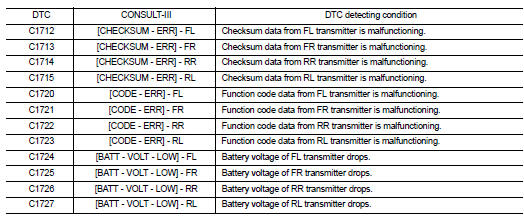

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

1.DRIVE VEHICLE

1. Drive at a speed of 40 km/h (25 MPH) or more for 3 minutes, and then drive the vehicle at any speed for 10 minutes.

2. Check all tire pressures with CONSULT-III within 5 minutes.

Does DATA MONITOR ITEM display tire pressure as normal without any warning lamp? YES >> Inspection End.

NO >> Refer to WT-16, "Diagnosis Procedure".

Diagnosis Procedure

MALFUNCTION CODE NO. 31, 32, 33, 34, 41, 42, 43, 44, 45, 46, 47 OR 48 (DTC C1712, C1713, C1714, C1715, C1720, C1721, C1722, C1723, C1724, C1725, C1726 OR C1727)

1.PERFORM ID REGISTRATION

1. Carry out ID registration of all transmitters. Refer to WT-6, "ID Registration Procedure".

2. Drive at a speed of 40 km/h (25 MPH) or more for 3 minutes, and then drive the vehicle at any speed for 10 minutes.

>> GO TO 2

2.REPLACE TRANSMITTER

1. Check low tire pressure warning lamp again for flashing, replace malfunctioning transmitter. Refer to WT- 68, "Removal and Installation".

2. Carry out ID registration of all transmitters.

Can ID registration of all transmitters be completed? YES >> GO TO 3

NO >> GO TO WT-14, "Diagnosis Procedure".

3.DRIVE VEHICLE

1. Drive at a speed of 40 km/h (25 MPH) or more for 3 minutes, and then drive the vehicle at any speed for 10 minutes.

2. Check all tire pressures with CONSULT-III within 5 minutes.

Does “DATA MONITOR ITEM” display tire pressure as normal without any warning lamp? YES >> Inspection End.

NO >> Replace malfunctioning transmitter, and perform Step 3 again.

Special Repair Requirement

Perform preliminary check. Refer to WT-5, "Preliminary Check".

    C1708 - c1711 data from transmitter not being received
    Description Tire pressure data for one or more transmitters is not being received by the BCM. DTC Logic DTC DETECTION LOGIC DTC CONFIRMATION PROCEDURE 1.ID REGISTRATION AND VEHICLE DRIVING ...

    C1716 - C1719 Transmitter pressure malfunction
    Description Air pressure data from one or more transmitters is out of range. DTC Logic DTC DETECTION LOGIC DTC CONFIRMATION PROCEDURE 1.ID REGISTRATION AND VEHICLE DRIVING 1. Carry out ID reg ...
