Nissan Altima 2007-2012 Service Manual: Charging system

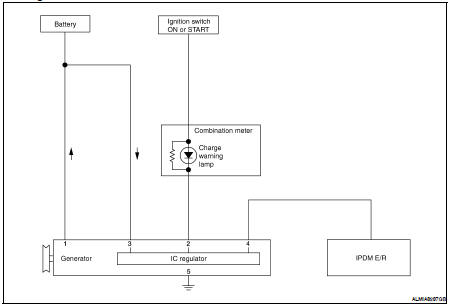

System Diagram

System Description

The generator provides DC voltage to operate the vehicle's electrical system and to keep the battery charged.

The voltage output is controlled by the IC regulator.

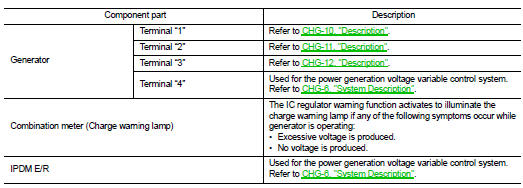

Component Description

    Power generation voltage variable control system
    System Diagram System Description Power generation variable voltage control system has been adopted. By varying the voltage to the generator, engine load due to power generation of the genera ...
