Nissan Altima 2007-2012 Service Manual: Common ITEM

 Diagnosis Description

BCM CONSULT-III FUNCTION

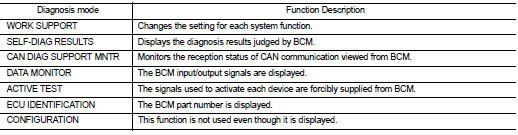

CONSULT-III performs the following functions via CAN communication with BCM.

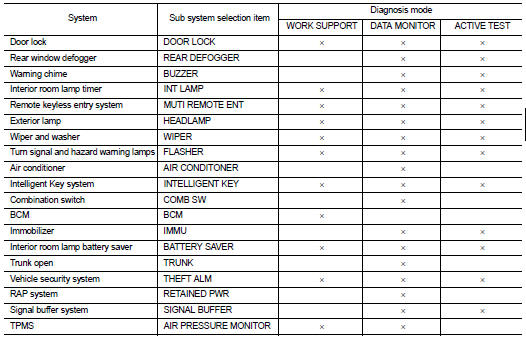

SYSTEM APPLICATION

BCM can perform the following functions for each system.

NOTE: It can perform the diagnosis modes except the following for all sub system selection items.

CONSULT-III Function

ECU IDENTIFICATION

Displays the BCM part No.

SELF-DIAG RESULT

Refer to BCS-91, "DTC Index".

    Retained PWR
     CONSULT-III Function (BCM - RETAINED PWR) Data monitor ...
