Nissan Altima 2007-2012 Service Manual: Common item

 Diagnosis Description

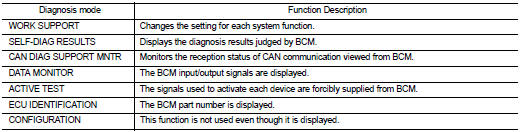

BCM CONSULT-III FUNCTION

CONSULT-III performs the following functions via CAN communication with BCM.

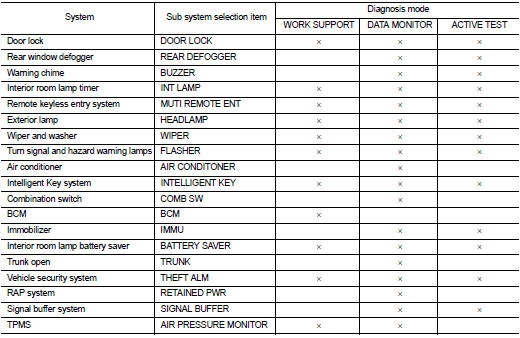

SYSTEM APPLICATION

BCM can perform the following functions for each system.

NOTE: It can perform the diagnosis modes except the following for all sub system selection items.

 CONSULT-III Function

ECU IDENTIFICATION

Displays the BCM part No.

SELF-DIAG RESULT

Refer to BCS-91, "DTC Index".

    Diagnosis system (BCM)
    ...

    Wiper
     CONSULT - III Function WORK SUPPORT * : Factory setting DATA MONITOR ACTIVE TEST ...
