Nissan Altima (L32) 2007-2012 Service Manual: CVT system

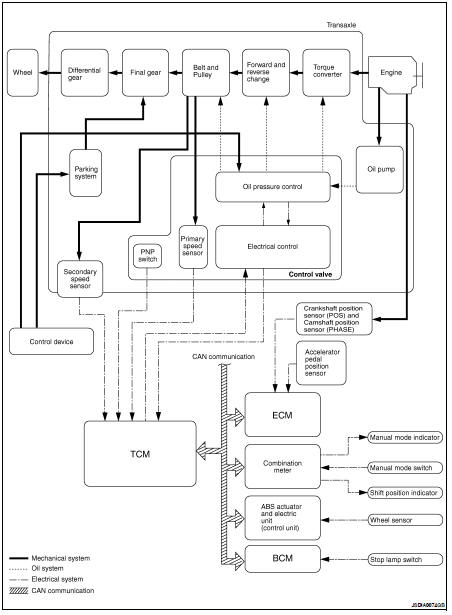

System Diagram

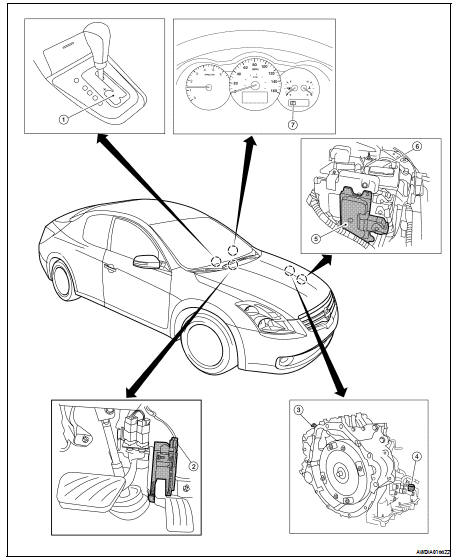

Component Parts Location - Coupe

1. Control device assembly (Manual mode select switch and manual mode position select switch)

2. Accelerator pedal position (APP) sensor

3. Secondary speed sensor

4. CVT unit harness connector

5. TCM

6. Battery

7. Shift position indicator Manual mode indicator

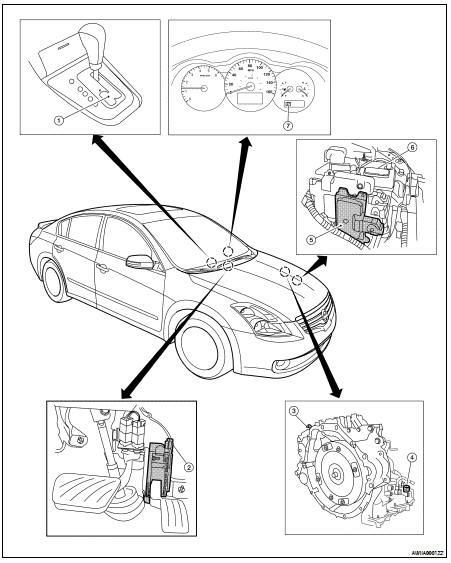

Component Parts Location - Sedan

1. Control device assembly (Manual mode select switch and manual mode position select switch)

2. Accelerator pedal position (APP) sensor

3. Secondary speed sensor

4. CVT unit harness connector

5. TCM

6. Battery

7. Shift position indicator Manual mode indicator

Mechanical system

Cross-Sectional View 1. Converter housing 2. Oil pump 3. Forward clutch 4. Reverse brake 5. Planetary carrier 6. Primary pulley 7. Steel belt 8. Sun gear 9. Side cover 10. Internal gear 1 ...
