Nissan Altima (L32) 2007-2012 Service Manual ≻ Transaxle & transmission cvt: RE0F10A ≻ Function diagnosis ≻ CVT system

Nissan Altima (L32) 2007-2012 Service Manual: CVT system

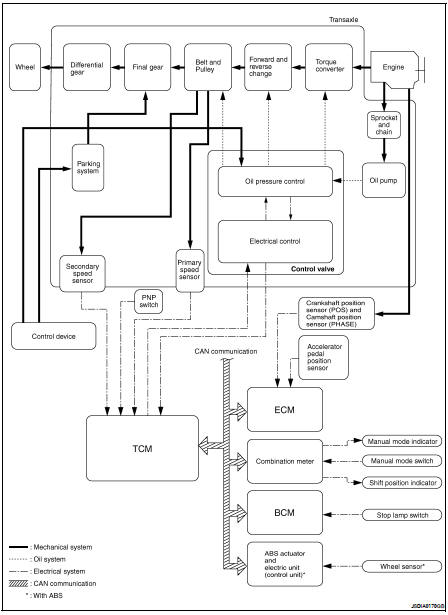

System Diagram

Component Parts Location - Coupe

1. Control device assembly

2. Accelerator pedal position sensor

3. CVT unit harness connector

4. Primary speed sensor

5. Secondary speed sensor

6. PNP switch

7. TCM

8. Battery

9. Shift position indicator Manual mode indicator

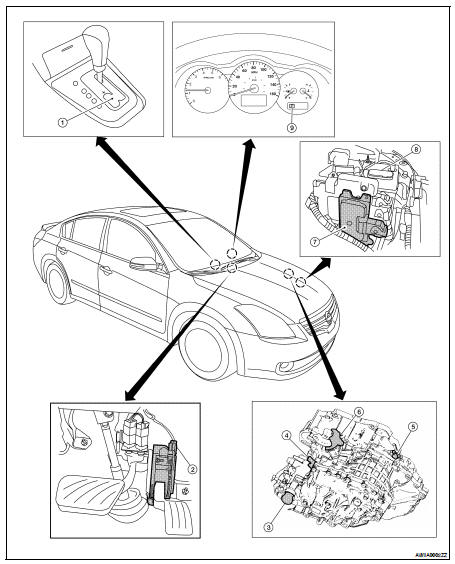

Component Parts Location - Sedan

1. Control device assembly

2. Accelerator pedal position sensor

3. CVT unit harness connector

4. Primary speed sensor

5. Secondary speed sensor

6. PNP switch

7. TCM

8. Battery

9. Shift position indicator Manual mode indicator

Mechanical system

Cross-Sectional View 1. Converter housing 2. Driven sprocket 3. Chain 4. Reverse brake 5. Oil pump 6. Forward clutch 7. Planetary carrier 8. Primary pulley 9. Sun gear 10. Steel belt 11. ...
