Nissan Altima 2007-2012 Service Manual: Door switch

Description

Detects door open/close condition and transmits the signal to BCM.

Component Function Check

1. CHECK FRONT DOOR SWITCH INPUT SIGNAL

Check (“DOOR SW-DR” and “DOOR SW-AS”) in “DATA MONITOR” mode with CONSULT-III. Refer to BCS- 34, "RETAINED PWR : CONSULT-III Function (BCM - RETAINED PWR)".

Is the inspection result normal? YES >> Front door switch circuit is OK.

NO >> Refer to PWC-326, "Diagnosis Procedure".

Diagnosis Procedure

1. CHECK HARNESS CONTINUITY

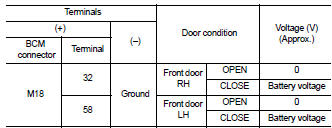

Check voltage between BCM connector and ground.

Is the measurement value within the specification? YES >> Replace BCM. Refer to BCS-96, "Removal and Installation".

NO >> GO TO 2

2. CHECK HARNESS CONTINUITY

1. Turn ignition switch OFF.

2. Disconnect BCM and front door switch.

3. Check continuity between BCM connector (A) and front door switch connector (B).

4. Check continuity between BCM connector (A) and ground.

Is the inspection result normal? YES >> GO TO 3

NO >> Repair or replace harness.

3. CHECK BCM OUTPUT SIGNAL

1. Connect BCM connector.

2. Check voltage between BCM connector and ground.

Is the measurement value within the specification? YES >> GO TO 4

NO >> Replace BCM. Refer to BCS-96, "Removal and Installation".

4. CHECK FRONT DOOR SWITCH

Check front door switch.

Refer to PWC-327, "Component Inspection".

Is the inspection result normal? YES >> Check intermittent incident. Refer to GI-42, "Intermittent Incident".

NO >> Replace front door switch.

Component Inspection

1. CHECK FRONT DOOR SWITCH

Check front door switches.

Is the inspection result normal? YES >> Front door switch is OK.

NO >> Replace front door switch.
