Nissan Altima (L32) 2007-2012 Service Manual: Engine control system symptoms
Symptom Table

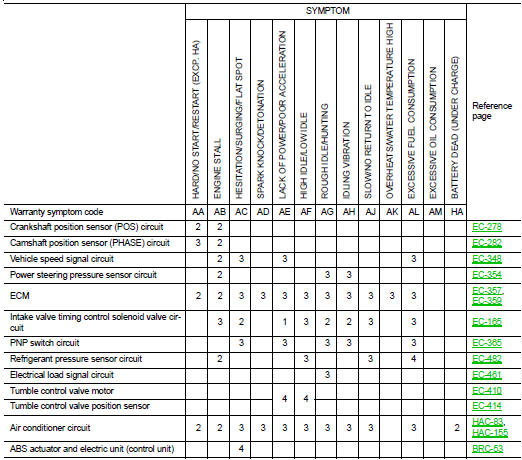

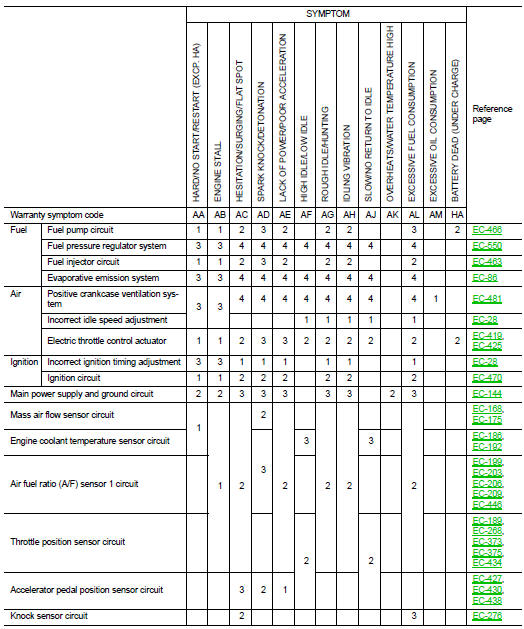

SYSTEM — BASIC ENGINE CONTROL SYSTEM
1 - 6: The numbers refer to the order of inspection.
(continued on next table)

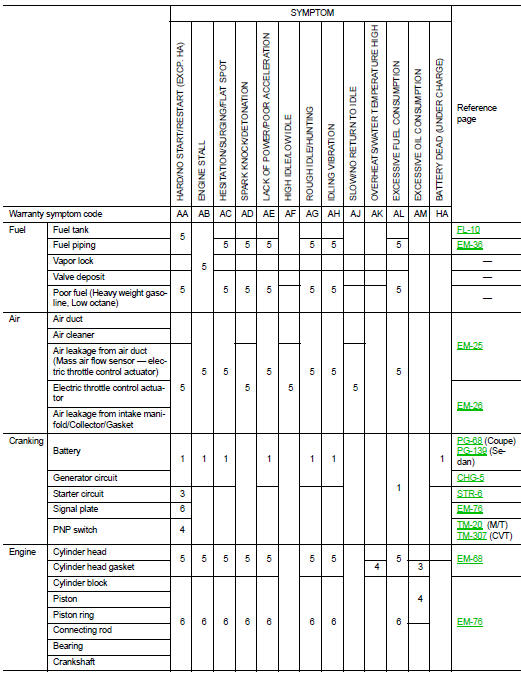

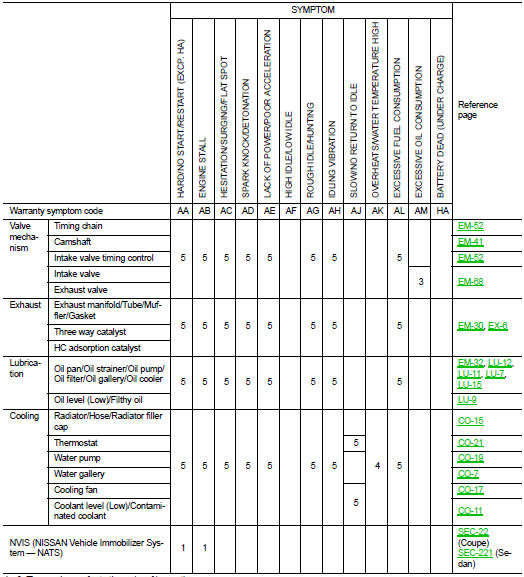

SYSTEM — ENGINE MECHANICAL & OTHER
1 - 6: The numbers refer to the order of inspection.
Description
FUEL CUT CONTROL (AT NO LOAD AND HIGH ENGINE SPEED)
If the engine speed is above 1,800 rpm under no load (for example, the
selector lever position is neutral and
engine speed is over ...
