Nissan Altima 2007-2012 Service Manual: Exterior lighting system symptoms

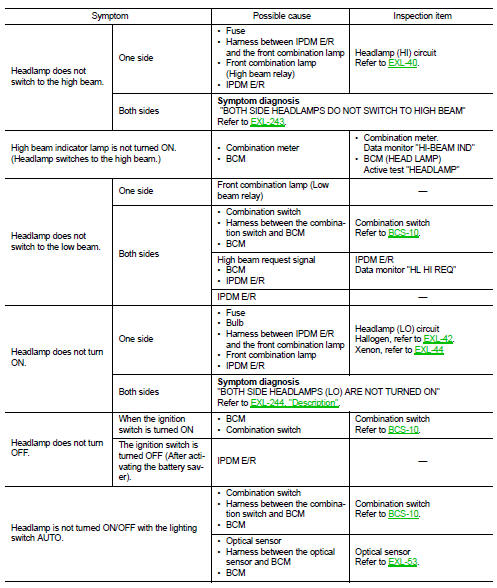

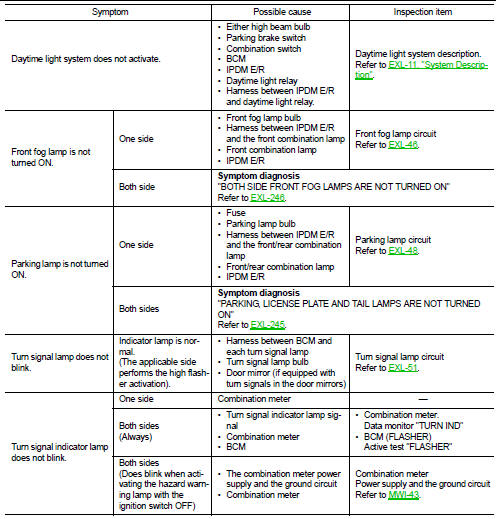

Symptom Table

CAUTION: Perform the self-diagnosis with CONSULT-III before the symptom diagnosis. Perform the trouble diagnosis if any DTC is detected.

    Symptom diagnosis
    ...

    Normal operating condition
    Description XENON HEADLAMP • The brightness and color of the light may vary slightly immediately after turning the headlamp ON. This condition will remain until the xenon bulb becomes stable. T ...
