Nissan Altima (L32) 2007-2012 Service Manual: Front seat
Exploded View

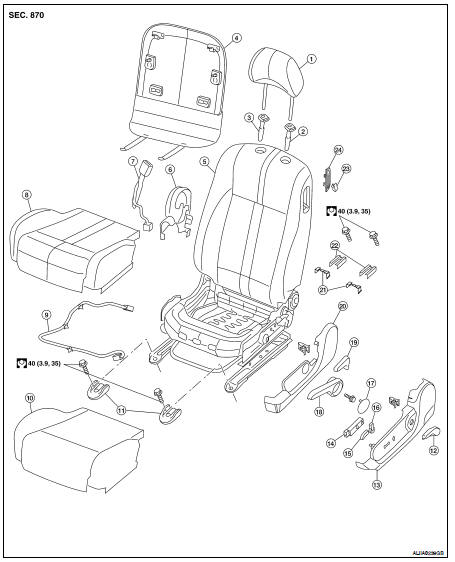

DRIVER'S SEAT
1. Headrest
2. Headrest holder (free)
3. Headrest holder (locked)
4. Seatback board
5. Seatback/frame assembly
6. Inner finisher
7. Seat belt buckle
8. Seat cushion trim
9. Seat harness
10. Seat cushion pad
11. Front leg covers
12. Lumbar lever
13. Power seat outer finisher
14. Seat switch assembly
15. Seat slide switch
16. Seat reclining switch
17. Recline lever finisher
18. Manual seat recline lever
19. Manual seat outer lower finisher
20. Manual seat outer finisher
21. Manual slide cover
22. Power rear leg covers
23. Entry knob
24. Bezel

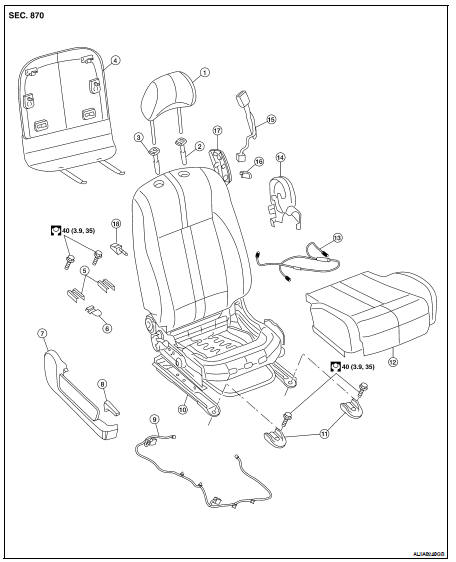

PASSENGER'S SEAT
1. Headrest
2. Headrest holder (locked)
3. Headrest holder (free)
4. Seatback board
5. Rear leg covers
6. Clip harness
7. Outer finisher
8. Seatback lever
9. Power seat harness
10. Seatback/frame assembly
11. Front leg covers
12. Seat cushion assembly
13. SRS seat harness
14. Inner finisher
15. Seat belt buckle
16. Release handle
17. Release handle cover
18. Kick lever
Removal and Installation
REMOVAL
CAUTION: • Before removing the front seat, turn the ignition switch off, disconnect both battery terminals and wait and least 3 minutes.
• When checking the power seat circuit for continuity using a circuit tester, do not confuse its connector with the side air bag module connector. Such an error may cause the air bag to deploy.
• Do not drop, tilt, or bump the side air bag module while installing the seat. Always handle it with care.
• After front side air bag module inflates, front seatback assembly must be replaced.
• Always replace passenger seat cushion as an assembly with Occupant Classification System.
• When removing or installing the seat trim, handle it carefully to keep dirt out and avoid damage.
• When removing and installing, use shop cloths to protect the parts from damage where they may interfere with other parts.
1. Slide the seat until the four seat bolts are visible and a tool can be inserted.
2. Disconnect the negative and positive battery terminals and wait at least 3 minutes.
3. Disconnect the harness connector for the side air bag module.
4. Disconnect the power seat harness connector and vehicle harness clip from the vehicle.
5. Remove the seat leg covers.
6. Remove the four seat bolts.
INSTALLATION
Installation is in the reverse order of removal.
• When installing the LH front seats tighten the bolts as shown.
• When installing the RH front seats tighten the bolts as shown.
On-vehicle repair
Rear seat
Exploded View
SPLIT REAR SEAT
1. Release strap
2. Rear seat lock assembly
3. Rear striker assembly
4. Rear seatback reinforcement
5. LH seatback frame
6. RH seatback frame
7. RH seatback pa ...
