Nissan Altima (L32) 2007-2012 Service Manual: Front wiper

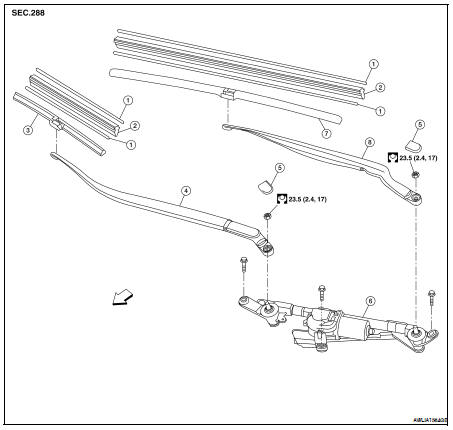

Exploded View

1. Rib (part of wiper blade refill)

2. Wiper blade refill

3. Front RH wiper blade assembly (includes wiper blade refill)

4. Front RH wiper arm

5. Wiper arm cap

6. Front wiper drive assembly

7. Front LH wiper blade assembly (includes wiper blade refill)

8. Front LH wiper arm

Front wiper blade refill

Removal and Installation REMOVAL 1. Remove the front wiper blade. Refer to WW-115, "FRONT WIPER BLADE : Removal and Installation". 2. Hold the wiper blade refill lip at the end ( ...
