Nissan Altima (L32) 2007-2012 Service Manual: Function diagnosis
M/T SYSTEM
System Diagram

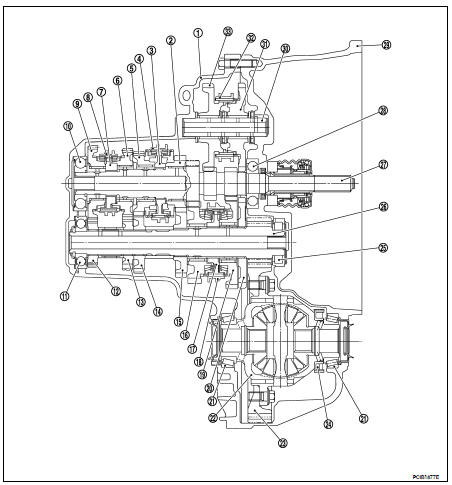

CROSS-SECTIONAL VIEW
1. Transaxle case
2. 3rd input gear
3. 3rd-4th synchronizer hub
4. 3rd-4th coupling sleeve
5. 4th input gear
6. 5th input gear
7. 5th-6th synchronizer hub
8. 5th-6th coupling sleeve
9. 6th input gear
10. Input shaft rear bearing
11. Mainshaft rear bearing
12. 6th main gear
13. 5th main gear
14. 4th main gear
15. 3rd main gear
16. 2nd main gear
17. 1st-2nd synchronizer hub
18. 1st-2nd coupling sleeve
19. 1st main gear
20. Reverse main gear
21. Differential side bearing
22. Differential case assembly
23. Final gear
24. Speedometer drive gear
25. Mainshaft front bearing
26. Mainshaft
27. Input shaft
28. Input shaft front bearing
29. Clutch housing
30. Reverse idler shaft
31. Reverse idler gear (Front)
32. Reverse coupling sleeve
33. Reverse idler gear (Rear)
System Description
DOUBLE-CONE SYNCHRONIZER
Double-cone synchronizer is adopted for 3rd gear to reduce operating force of the shift lever.

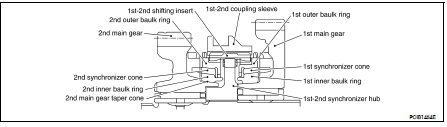

TRIPLE-CONE SYNCHRONIZER
Triple-cone synchronizer are adopted for 1st and 2nd gears to reduce operating force of the shift lever.
REVERSE GEAR NOISE PREVENTION FUNCTION (SYNCHRONIZING METHOD)
Reverse gear can be matched smoothly in a structure by setting synchronizer hub (1) of reverse idler gear (5) [Rear], reverse coupling sleeve (2), reverse baulk ring (3), and reverse insert spring (4) to reverse idler gears, and letting reverse gear be synchronized.
6 : Reverse idler gear (Front)
Symptom diagnosis
NOISE, VIBRATION AND HARSHNESS
(NVH) TROUBLESHOOTING
NVH Troubleshooting Chart
Use the chart below to help you find the cause of the symptom. The numbers
indicate the order of the inspection.
...
