Nissan Altima 2007-2012 Service Manual: Headlamp
CONSULT-III Function

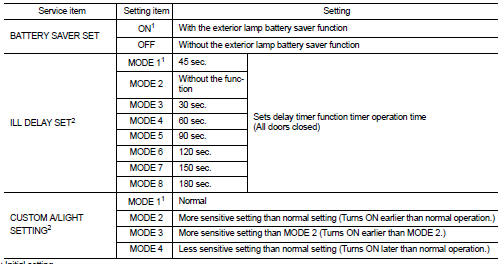

WORK SUPPORT
1 : Initial setting
2: With auto light system

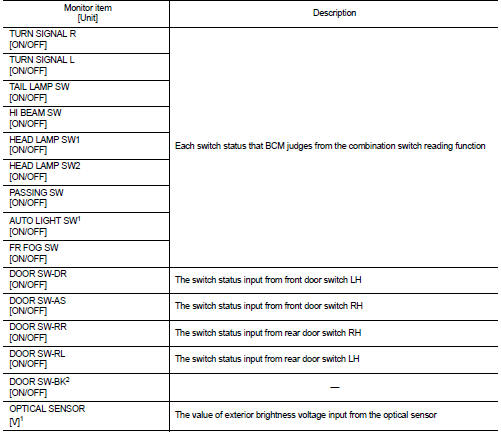

DATA MONITOR
1: With auto light system.
2: The item is indicated, not monitored.

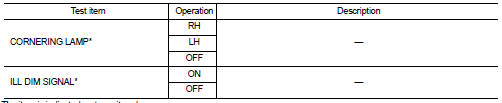

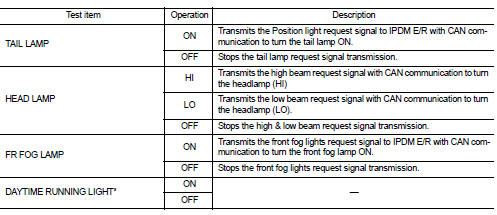

ACTIVE TEST
*: The item is indicated, not monitored.
Multi remote ent
CONSULT-III Function
(BCM - MULTIREMOTE ENT)
DATA MONITOR
ACTIVE TEST
WORK SUPPORT
...
Wiper
CONSULT - III Function
WORK SUPPORT
* : Factory setting
DATA MONITOR
ACTIVE TEST
...
Other materials:
Parking brake switch signal circuit
Description
Transmits the parking brake switch signal to the combination meter.
Component Function Check
1.COMBINATION METER INPUT SIGNAL
1. Select “METER/M&A” on CONSULT-III.
2. Monitor “PKB SW” of “DATA MONITOR” while applying and releasing the parking
brake.
>> ...
Key slot
Diagnosis Procedure
1.CHECK KEY SLOT POWER SUPPLY CIRCUI
1. Turn ignition switch OFF.
2. Disconnect key slot connector.
3. Check voltage between slot connector and ground.
Is the inspection result normal?
YES >> GO TO 2
NO >> Repair or replace key slot power supply circuit ...
Body component parts
Underbody Component Parts
1. Upper dash assembly
2. Lower dash crossmember reinforcement
3. Rear crossmember (RH, LH)
4. Front crossmember (RHLH)
5. Front sidemember reinforcement upper (RHLH)
6. Front floor assembly (RHLH)
7. Front sidemember reinforcement lower
8. Front floor center
9. ...
