Nissan Altima (L32) 2007-2012 Service Manual ≻ Lan system can ≻ Component diagnosis ≻ Malfunction area chart

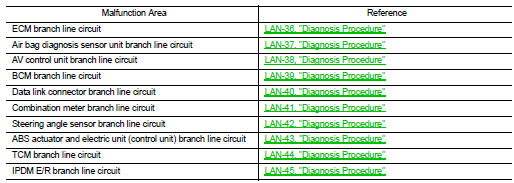

Nissan Altima (L32) 2007-2012 Service Manual: Malfunction area chart

Main Line

Branch Line

Short Circuit

Can communication system

Component Parts Location 1. ABS actuator and electric unit (control unit) E26 2. AV control unit M46 3. TCM F16 4. ECM E10 5. IPDM E/R E17 6. BCM M19 7. Combination meter M24 8. Steering an ...

Main line between dlc and abs circuit

Diagnosis Procedure INSPECTION PROCEDURE 1.CHECK CONNECTOR 1. Turn the ignition switch OFF. 2. Disconnect the battery cable from the negative terminal. 3. Check the following terminals and c ...
