Nissan Altima 2007-2012 Service Manual: Mudguard

Removal and Installation

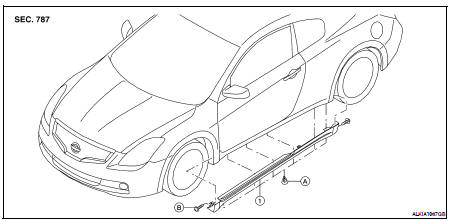

1. Center mudguard

A. C205 push pin

B. Splash guard screw

REMOVAL

1. Remove the C205 push-pins located on the under body.

2. Remove splash guard screws.

3. Remove the center mudguard screws and remove the center mudguard.

INSTALLATION

Installation is in the reverse order of removal.
