Nissan Altima (L32) 2007-2012 Service Manual ≻ Engine cooling system QR25DE ≻ Function diagnosis ≻ Overheating cause analysis

Nissan Altima (L32) 2007-2012 Service Manual: Overheating cause analysis

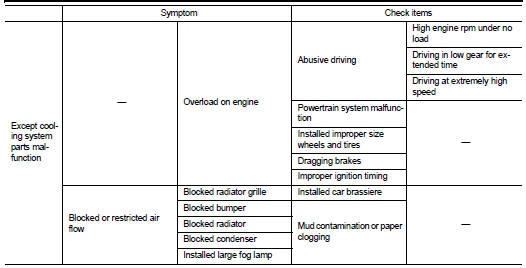

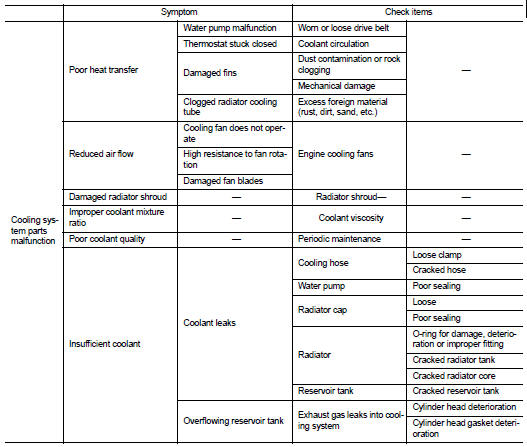

Troubleshooting Chart
