Nissan Altima (L32) 2007-2012 Service Manual: P1148 Closed loop control
DTC Logic

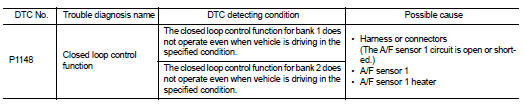

DTC DETECTION LOGIC
NOTE: DTC P1148 is displayed with another DTC for A/F sensor 1.
Perform the trouble diagnosis for the corresponding DTC.
