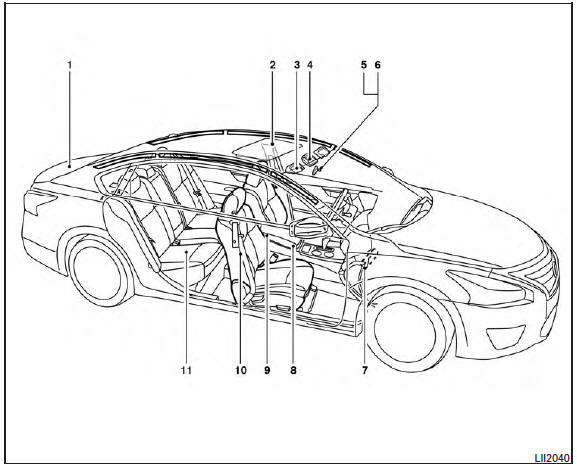

Nissan Altima (L33) 2013-2018 Owners Manual: Passenger compartment
1. Interior trunk access
2. Moonroof (if so equipped)
3. Sun visors
4. Interior lights, illuminated entry
5. HomeLink® universal transceiver
(if so equipped)
6. Automatic anti-glare rearview mirror
(if so equipped)
7. Glove box
8. Cup holders
9. Console box
10. Front seat
11. Rear seat
See the page number indicated in parentheses for operating details.
