Nissan Altima 2007-2012 Service Manual: POWER supply and ground circuit

BCM

Diagnosis Procedure

1. CHECK FUSE AND FUSIBLE LINK

Check if the following BCM fuse or fusible link are blown.

Is the fuse or fusible link blown? YES >> Replace the blown fuse or fusible link after repairing the affected circuit.

NO >> GO TO 2

2. CHECK POWER SUPPLY CIRCUIT

1. Turn ignition switch OFF.

2. Disconnect BCM.

3. Check voltage between BCM harness connector and ground.

Is the measurement normal? YES >> GO TO 3

NO >> Repair or replace harness.

3. CHECK GROUND CIRCUIT

Check continuity between BCM harness connector and ground.

Does continuity exist? YES >> Inspection End.

NO >> Repair or replace harness.

Special Repair Requirement

1. REQUIRED WORK WHEN REPLACING BCM

Initialize control unit. Refer to BCS-6, "CONFIGURATION (BCM) : Special Repair Requirement".

>> Work End.

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)

Diagnosis Procedure

1. CHECK FUSES AND FUSIBLE LINK

Check that the following IPDM E/R fuses or fusible link are not blown.

Is the fuse blown? YES >> Replace the blown fuse or fusible link after repairing the affected circuit.

NO >> GO TO 2

2. CHECK POWER SUPPLY CIRCUIT

1. Turn ignition switch OFF.

2. Disconnect IPDM E/R connectors.

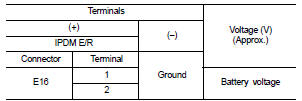

3. Check voltage between IPDM E/R harness connector and ground.

Is the measurement value normal? YES >> GO TO 3

NO >> Repair harness or connector.

3. CHECK GROUND CIRCUIT

Check continuity between IPDM E/R harness connectors and ground.

Does continuity exist? YES >> Inspection End.

NO >> Repair harness or connector.

    B26E1 No reception of engine status signal
    Description BCM receives the engine status signal from ECM via CAN communication. DTC Logic DTC DETECTION LOGIC NOTE: • If DTC B26E1 is displayed with DTC U1000, first perform the trouble diag ...

    Key slot
    Diagnosis Procedure 1.CHECK KEY SLOT POWER SUPPLY CIRCUIT 1. Turn ignition switch OFF. 2. Disconnect key slot connector. 3. Check voltage between slot connector and ground. Is the inspec ...
