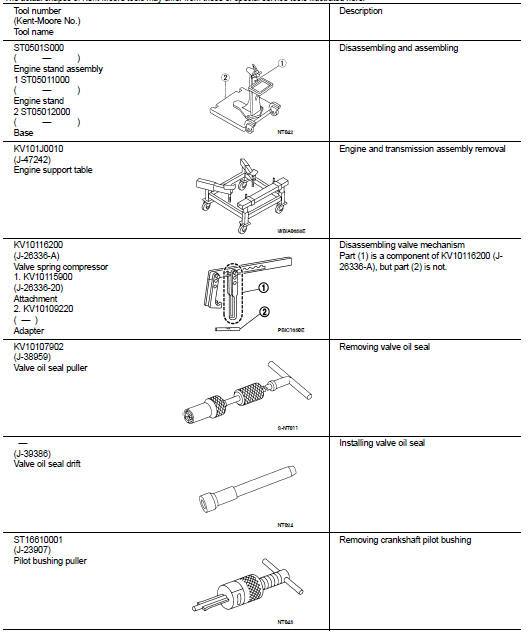

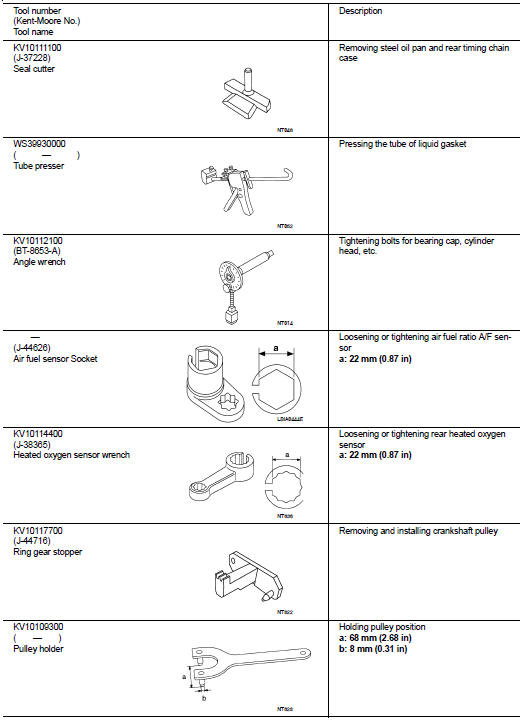

Special Service Tool
The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

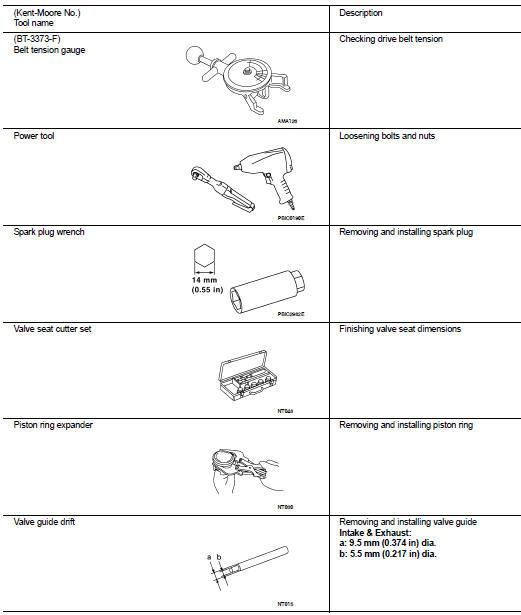

Commercial Service Tool
Precaution
Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TENSIONER"
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER ...
Function diagnosis
NOISE, VIBRATION, AND HARSHNESS
(NVH) TROUBLESHOOTING
NVH Troubleshooting - Engine Noise
1. Camshaft bearing noise
2. Piston pin noise
3. Piston slap noise
4. Main bearing noise
5. Connecting ...
