Nissan Altima 2007-2012 Service Manual: Preparation

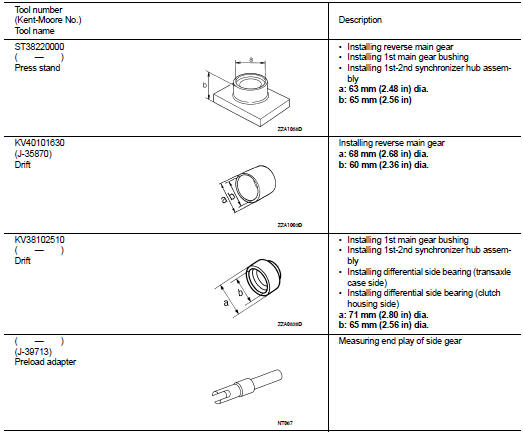

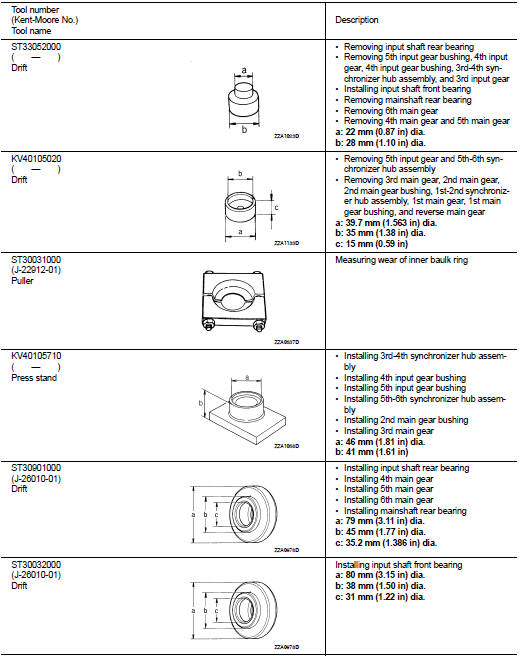

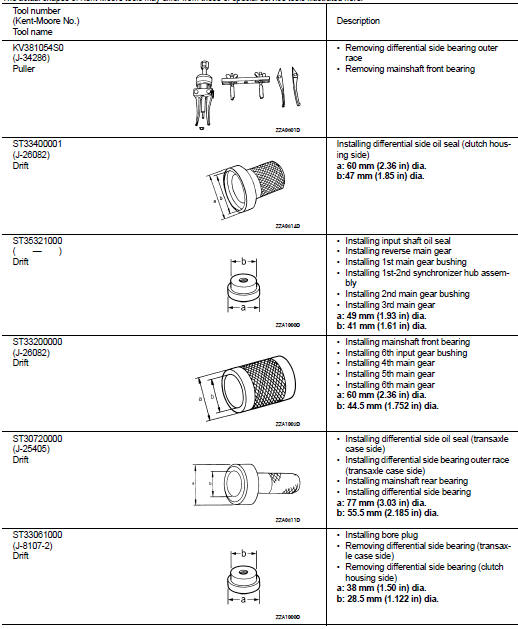

Special Service Tools

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

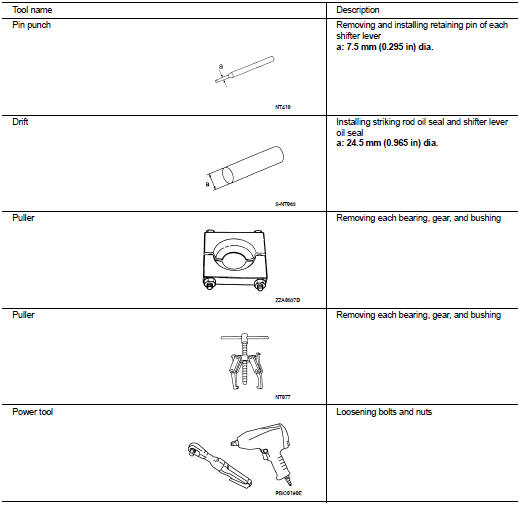

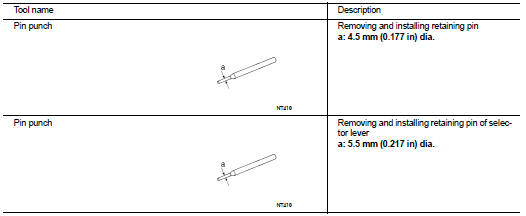

Commercial Service Tools
