Nissan Altima 2007-2012 Service Manual: Rear RH

 Description

Door glass moves UP/DOWN by receiving the signal from main power window and door lock/unlock switch or rear power window switch RH.

Component Function Check

1. CHECK POWER WINDOW MOTOR CIRCUIT

Does rear power window motor RH operate with operating power window main switch or rear power window switch RH? Is the inspection result normal? YES >> Power window motor is OK.

NO >> Refer to PWC-119, "REAR RH : Diagnosis Procedure".

Diagnosis Procedure

Rear Power Window Motor RH Circuit Check

1. CHECK REAR POWER WINDOW SWITCH RH OUTPUT SIGNAL

1. Disconnect rear power window motor RH.

2. Turn ignition switch ON.

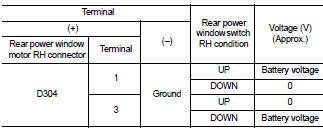

3. Check voltage between rear power window motor RH connector and ground.

Is the measurement value within the specification? YES >> GO TO 2

NO >> Check rear power window switch RH. Refer to PWC-120, "REAR RH : Component Inspection".

2. CHECK HARNESS CONTINUITY

1. Turn ignition switch OFF.

2. Disconnect rear power window switch RH.

3. Check continuity between rear power window switch RH connector (A) and rear power window motor RH connector (B).

4. Check continuity between rear power window switch RH connector (A) and ground.

Is the inspection result normal? YES >> GO TO 3

NO >> Repair or replace harness.

3. CHECK REAR POWER WINDOW MOTOR RH

Check rear power window motor RH.

Refer to PWC-120, "REAR RH : Component Inspection".

Is the inspection result normal? YES >> Check intermittent incident. Refer to GI-42, "Intermittent Incident".

NO >> Replace rear power window motor RH. Refer to GW-14, "Removal and Installation".

Component Inspection

1. CHECK REAR POWER WINDOW MOTOR RH

Does motor operate by connecting the battery voltage directly to rear power window motor RH?

Is the inspection result normal? YES >> Power window motor is OK.

NO >> Replace rear power window motor RH. Refer to GW-14, "Removal and Installation".
