Nissan Altima 2007-2012 Service Manual: Service data and specifications (SDS)

Nissan Altima 2007-2012 Service Manual / Steering system / Service data and specifications (SDS)

Steering Wheel

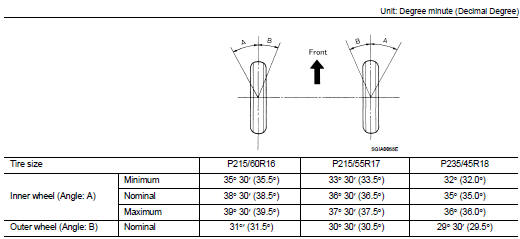

Steering Angle

Steering Column

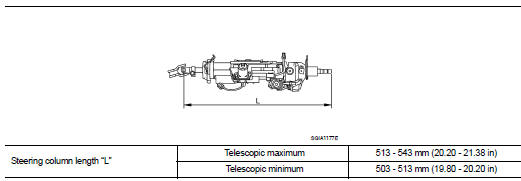

STEERING COLUMN LENGTH

TILT MECHANISM OPERATING RANGE

Steering Gear

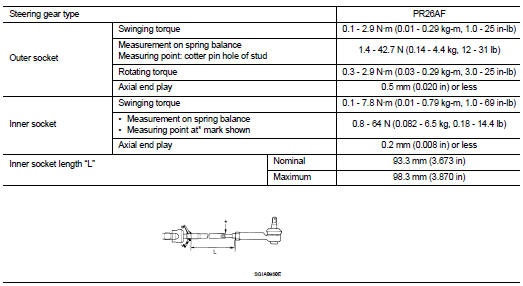

STEERING OUTER SOCKET AND INNER SOCKET

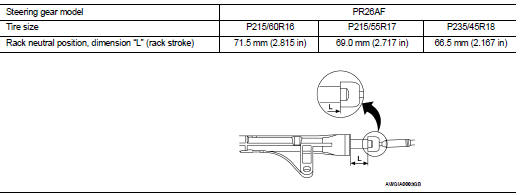

RACK STROKE

Oil Pump

Steering Fluid

    Power steering oil pump
    QR25DE : Disassembly and Assembly The power steering oil pump and pulley is not serviceable and should be replaced as an assembly. For front and rear bracket removal, refer to ST-19, "QR25DE ...

    Steering control system
    ...
