Nissan Altima 2007-2012 Service Manual: Service data and specifications (SDS)
General Specifications

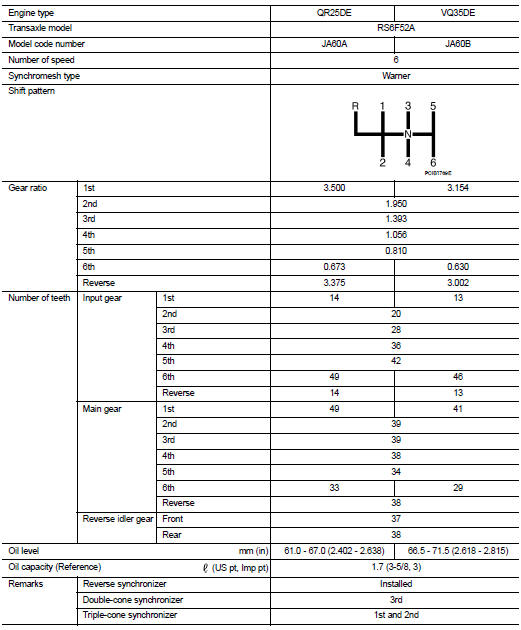

TRANSAXLE

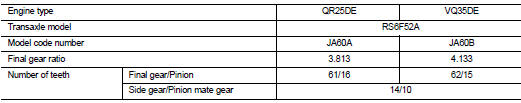

FINAL GEAR

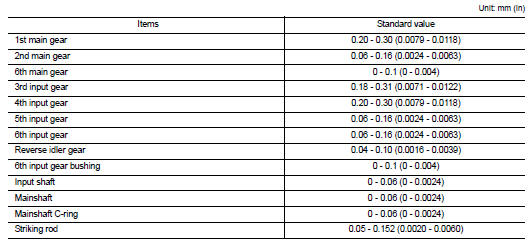

End Play

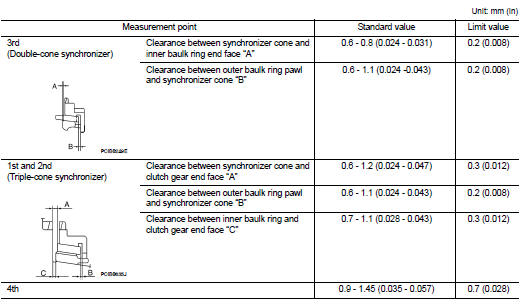

Baulk Ring Clearance

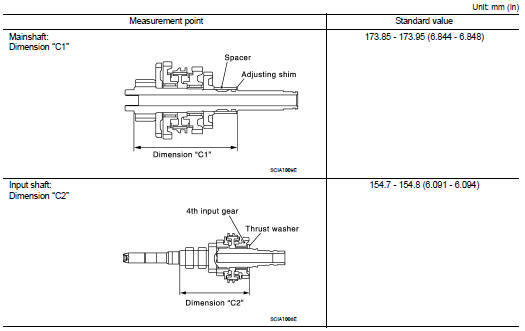

Dimension
Differential Side Bearing Preload
Differential Side Gear Clearance
Shift fork and fork rod
Exploded View
Refer to TM-28, "Exploded View".
Disassembly
1. Remove return spring to striking rod assembly.
Assembly
1. Temporarily install return spring to striking rod assembly. ...
