Nissan Altima 2007-2012 Service Manual: Standardized relay

Description

NORMAL OPEN, NORMAL CLOSED AND MIXED TYPE RELAYS

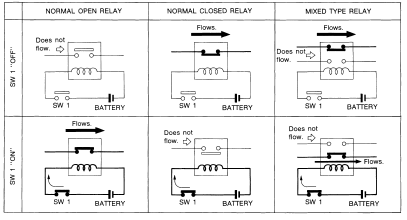

Relays can mainly be divided into three types: normal open, normal closed and mixed type relays.

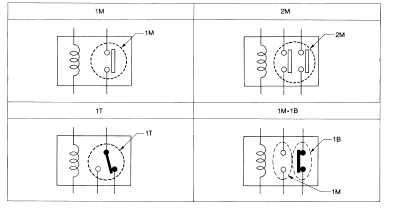

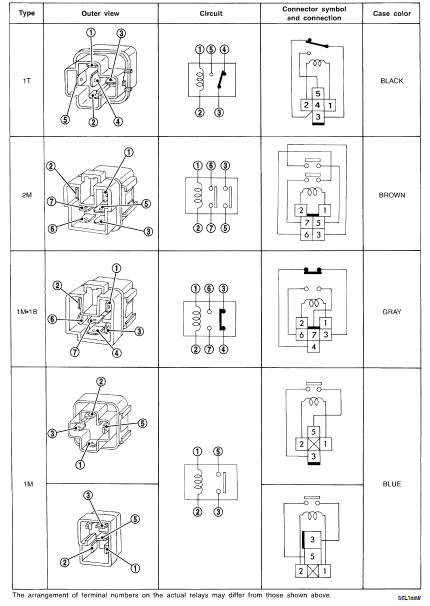

TYPE OF STANDARDIZED RELAYS

    Electrical units location
