Nissan Altima 2007-2012 Service Manual: Starting system

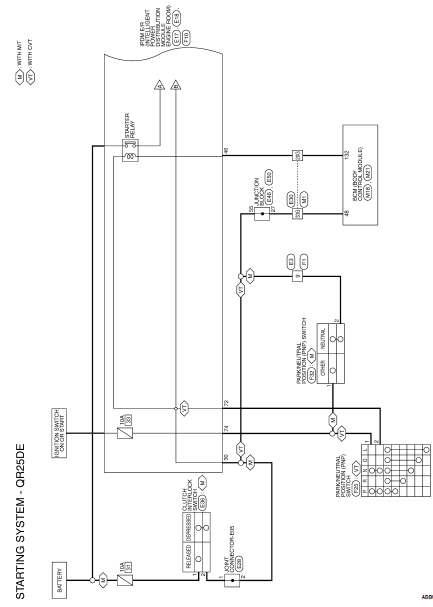

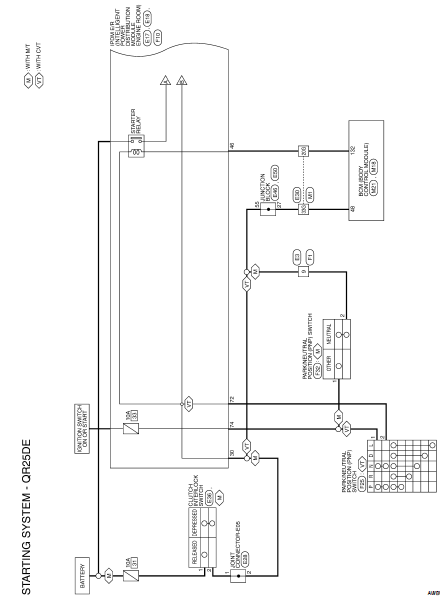

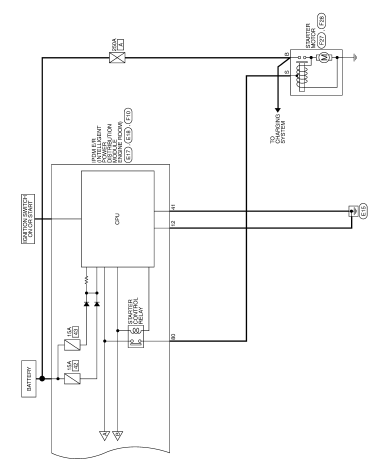

Wiring Diagram - Coupe

Wiring Diagram - Sedan

    S connector circuit
    Description The starter motor magnetic switch is supplied with power when the ignition switch is turned to the START position while the selector lever is in the P or N position (CVT models) or the ...

    Symptom diagnosis
    STARTING SYSTEM Symptom Table ...
