Nissan Altima 2007-2012 Service Manual: Symptom diagnosis

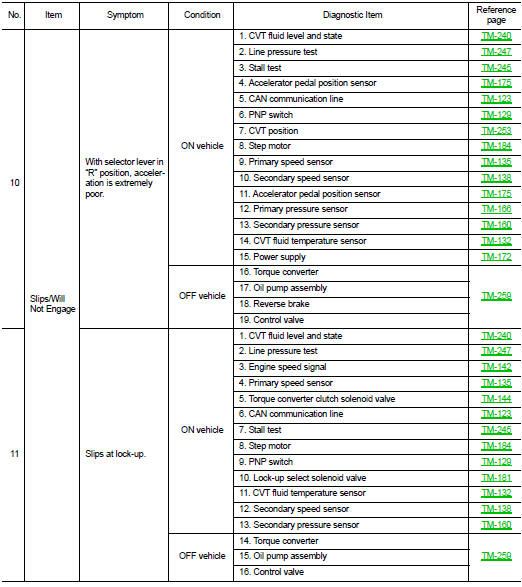

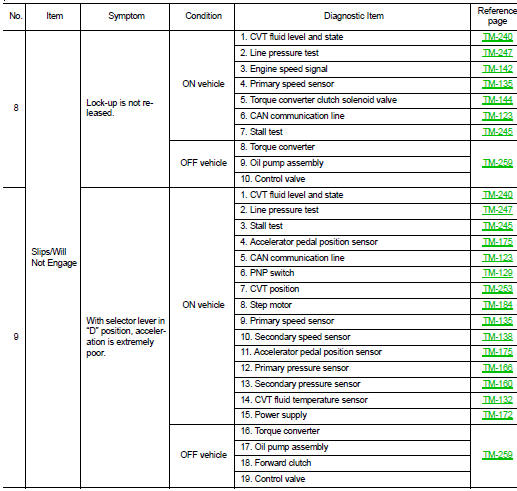

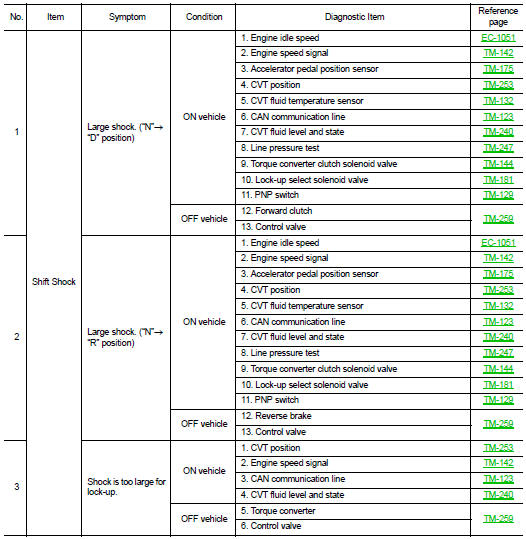

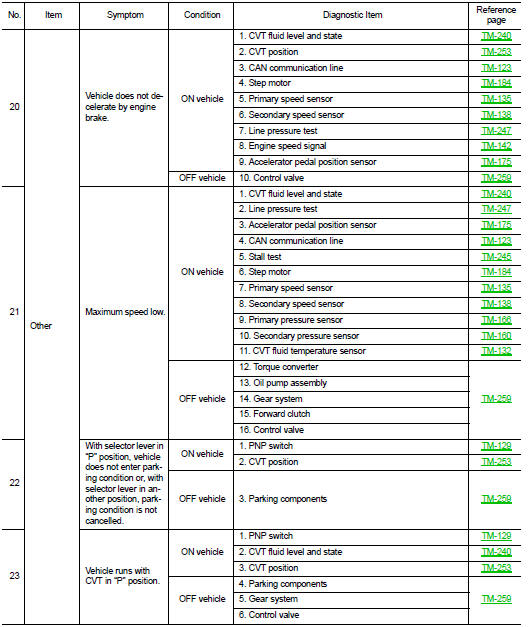

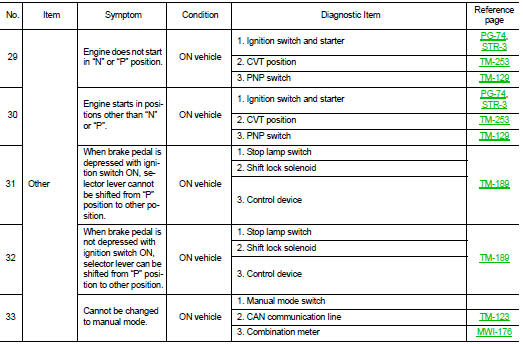

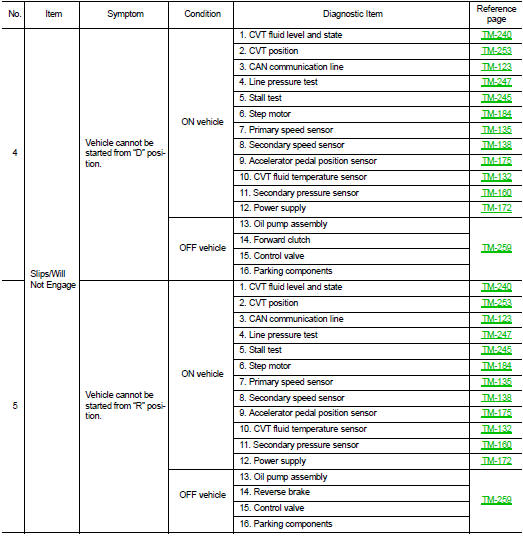

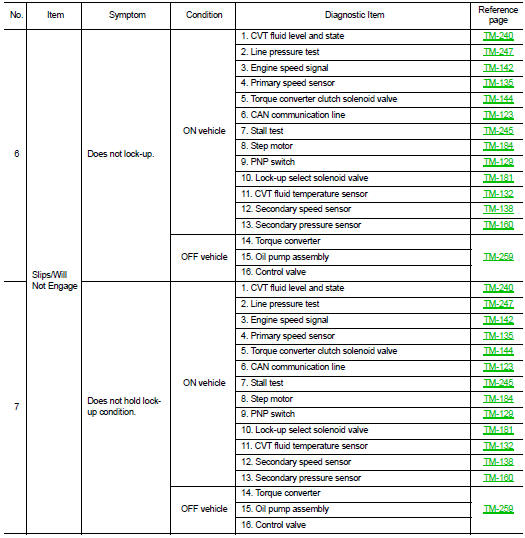

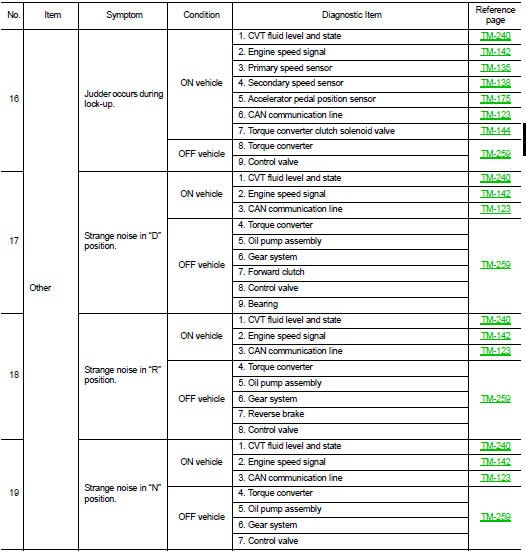

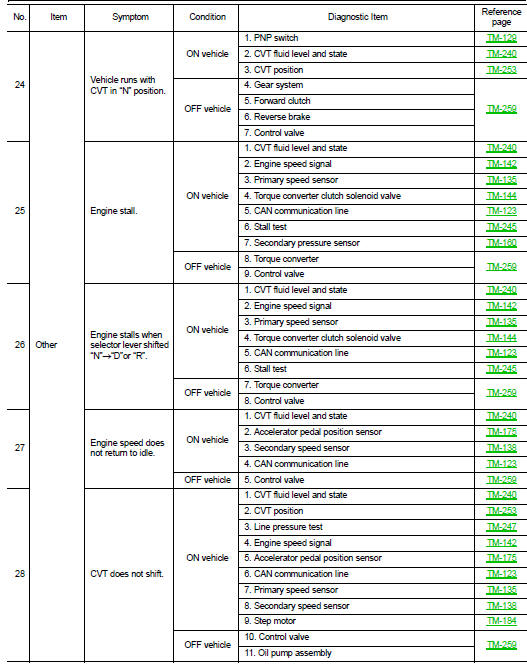

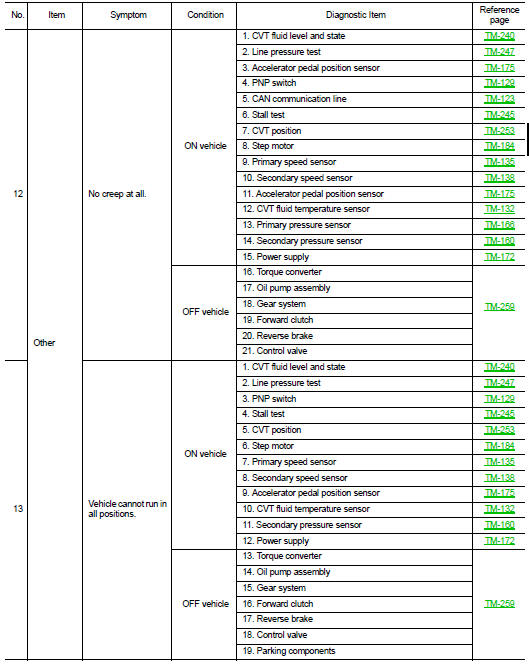

SYSTEM SYMPTOM Symptom Table

The diagnostics item numbers show the sequence for inspection. Inspect in order from item 1.
