Nissan Altima 2007-2012 Service Manual: Terminology
SAE J1930 Terminology List

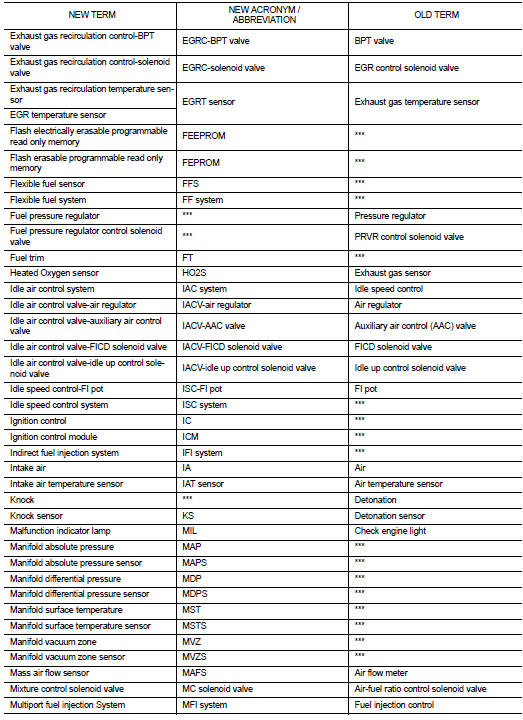

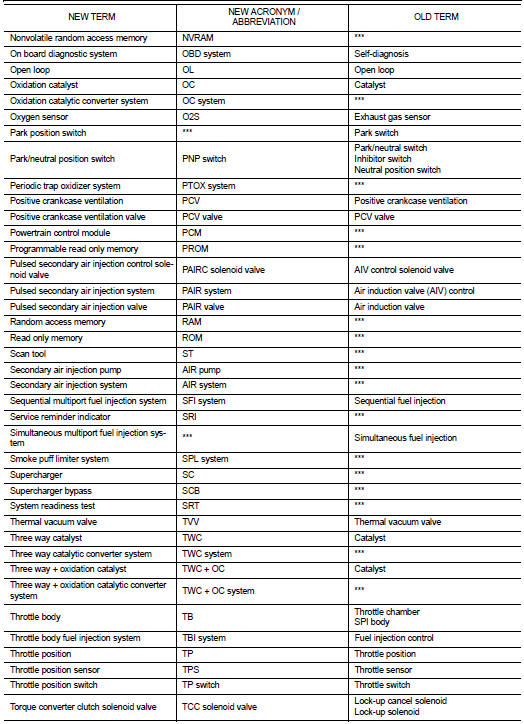

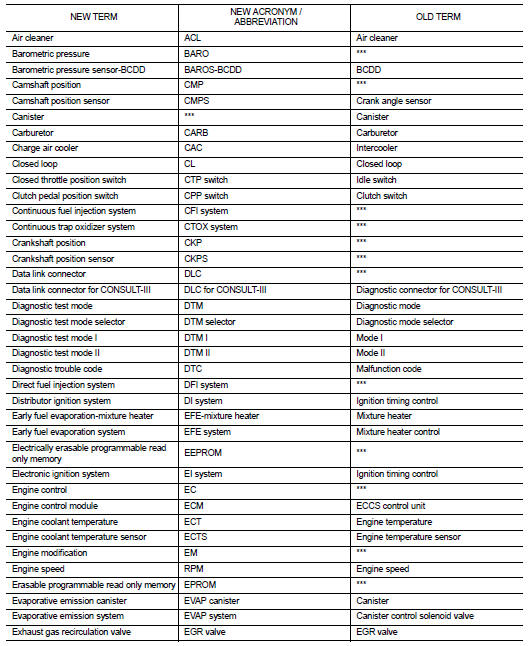

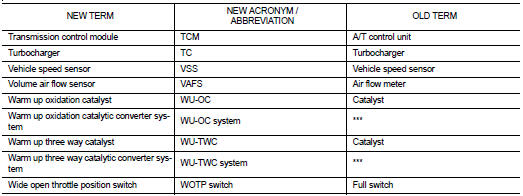

All emission related terms used in this publication in accordance with SAE J1930 are listed. Accordingly, new terms, new acronyms/abbreviations and old terms are listed in the following chart.
***: Not applicable
