Nissan Altima (L32) 2007-2012 Service Manual ≻ General information ≻ How to use this manual ≻ Tightening torque of standard bolts

Nissan Altima (L32) 2007-2012 Service Manual: Tightening torque of standard bolts

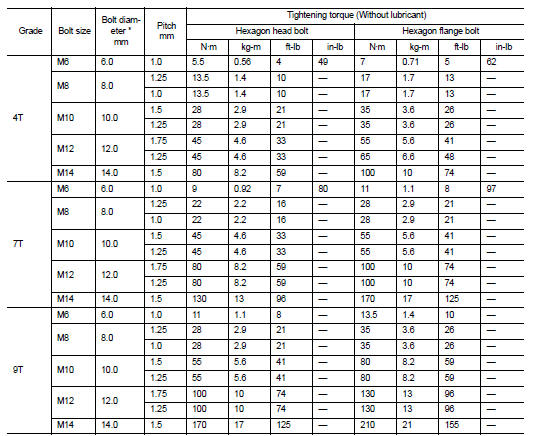

Tightening Torque Table

*: Nominal diameter

1. Special parts are excluded.

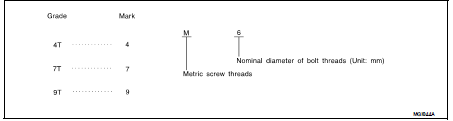

2. This standard is applicable to bolts having the following marks embossed on the bolt head.
