Nissan Altima 2007-2012 Service Manual: Trunk room trim & trunk lid finisher

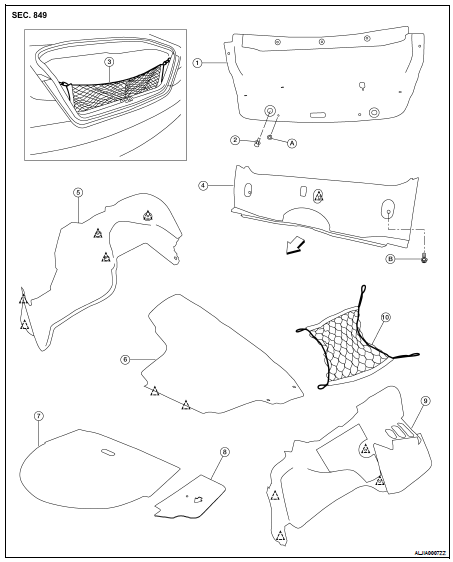

Exploded View

TRUNK ROOM TRIM

1. Trunk lid finisher

2. Trunk lid rubber bumper

3. Trunk net rear

4. Trunk rear finisher

5. Trunk side finisher (RH)

6. Trunk floor carpet

7. Spare tire cover

8. Trunk floor board (LH)

9. Trunk side finisher (LH)

10. Trunk net side

A. Clip C205

B. Clip - hook type

Removal and Installation

REMOVAL

TRUNK ROOM TRIM

1. Release the latch, then position rear seatback (RH/LH) to the folded down position.

2. Release the clips, then remove trunk floor carpet.

3. Remove trunk net rear and trunk net side (if installed).

4. Release the clips, then remove trunk rear finisher.

5. Release the clips, then remove trunk side finisher (RH/LH).

6. Remove spare tire cover and trunk floor board (LH).

7. Remove the trunk lid rubber bumper (RH/LH), then release the clips and remove trunk lid finisher.

INSTALLATION

Installation is in the reverse order of removal.
