Nissan Altima 2007-2012 Service Manual: U1000 can comm circuit

Description

Refer to LAN-7, "System Description".

DTC Logic

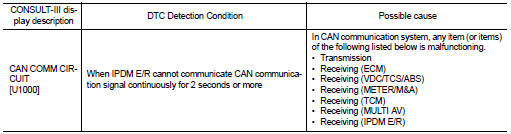

DTC DETECTION LOGIC

Diagnosis Procedure

1.PERFORM SELF DIAGNOSTIC

1. Turn ignition switch ON and wait for 2 second or more.

2. Check “Self Diagnostic Result”.

Is “CAN COMM CIRCUIT” displayed? YES >> Refer to LAN-8, "CAN Communication Control Circuit".

NO >> Refer to GI-42, "Intermittent Incident".

    U1010 control unit (CAN)
    DTC Logic DTC DETECTION LOGIC Diagnosis Procedure 1. REPLACE BCM When DTC U1010 is detected, replace BCM. >> Replace BCM. Refer to BCS-96, "Removal and Installation". ...
