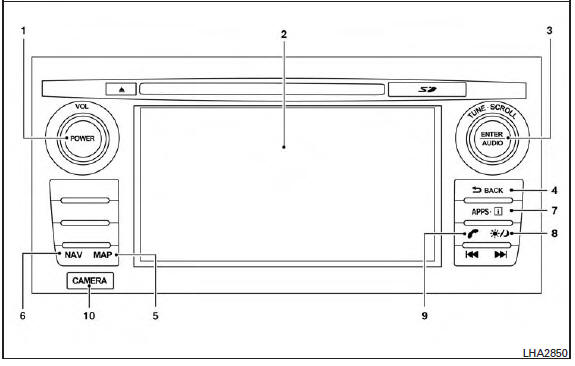

Nissan Altima Owners Manual: Control panel buttons — color screen with Navigation System (if so equipped)

1. PWR button/VOL (volume) control knob


1. PWR button/VOL (volume) control knob 2. Display screen
3. ENTER / AUDIO button / TUNE / SCROLL knob
4. 5. MAP button* BACK button
5. MAP button*
6. NAV button*
7. 8.  (brightness control) button button
8. 9.  button** (brightness control) button
9. 10. CAMERA button button**
10. CAMERA button

* For information regarding the Navigation system control buttons, refer to the separate Navigation System Owner’s Manual.

** For information regarding the Bluetooth® Hands-Free Phone System control button, see “Bluetooth® Hands-Free Phone System with Navigation System (if so equipped)” in this section.

When you use this system, make sure the engine is running.

If you use the system with the engine not running (ignition ON or ACC) for a long time, it will discharge the battery, and the engine will not start.

Reference symbols:

“Example” — Words marked in quotes refer to a key shown only on the display. These keys can be selected by touching the screen.
