The Vehicle Identification Number (VIN)
plate is attached as shown. This number is
the identification for your vehicle and is
used in the vehicle registration.
Vehicle identification number
(chassis number)
The vehicle identification number is located
as shown.
Engine serial number
2.5L 4 cylinder (PR25DD engine model)
2.0L 4 cylinder (KR20DDET engine
model)
The number is stamped on the engine as
shown.
F.M.V.S.S./C.M.V.S.S. certification label
The Federal/Canadian Motor Vehicle
Safety Standard (F.M.V.S.S./C.M.V.S.S.) certification
label is affixed as shown. This label
contains valuable vehicle information, such
as: (GVWR), (GAWR), month and year of
manufacture, (VIN), etc. Review it carefully.
Emission control information label
The emission control information label is
attached to the underside of the hood as
shown.
Tire and Loading Information label
The cold tire pressure is shown on the Tire
and Loading Information label. The label is
located as shown.
Air conditioner specification label
The air conditioner specification label is
affixed to the underside of the hood as
shown.

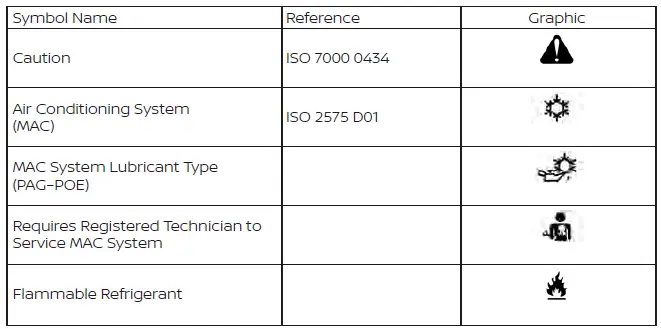

Air Conditioner Specification Label Symbols
Installing front license plate
To mount the front license plate, attach the
license plate bracket to the bumper fascia
at the location marks (small dimples) using
the two provided screws A.
Engine
This spark ignition system complies with the Canadian standard ICES-002.
Wheels and tires
Dimensions and weights
When traveling or registering in another
country
When planning to drive your ...
WARNING
It is extremely dangerous to
ride in a cargo area inside a vehicle.
In a collision, people riding
in these areas are more
likely to be seriously injured or
killed.
Do not allow people ...
