Nissan Altima (L32) 2007-2012 Service Manual: Front door speaker (sedan)

Description

The audio unit sends audio signals to the BOSE speaker amp. The BOSE speaker amp. amplifies the audio signals before sending them to the front door speakers using the audio signal circuits.

Diagnosis Procedure

1.HARNESS CHECK

1. Disconnect BOSE speaker amp. connector B121 and suspect speaker connector.

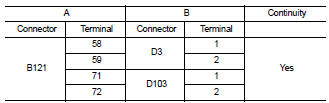

2. Check continuity between BOSE speaker amp. harness connector B121 (A) and suspect speaker harness connector (B).

3. Check continuity between BOSE speaker amp. harness connector B121 (A) and ground.

Are continuity test results as specified? YES >> GO TO 2

NO >> • Check connector housings for disconnected or loose terminals.

• Repair harness or connector.

2.FRONT DOOR SPEAKER SIGNAL CHECK

1. Connect BOSE speaker amp. connector B121 and suspect speaker connector.

2. Turn ignition switch to ACC.

3. Push “POWER” switch.

4. Check the signal between BOSE speaker amp. harness connector B121 terminals with CONSULT-III or oscilloscope.

Is audio signal voltage as specified? YES >> Replace suspect speaker. Refer to AV-219, "Removal and Installation".

NO >> GO TO 3

3.HARNESS CHECK

1. Disconnect audio unit connector M43 and BOSE speaker amp.

connector B121.

2. Check continuity between audio unit harness connector M43 (A) and BOSE speaker amp. harness connector B121 (B).

3. Check continuity between audio unit harness connector M43 (A) and ground.

Are continuity test results as specified? YES >> GO TO 4

NO >> • Check connector housings for disconnected or loose terminals.

• Repair harness or connector.

4.FRONT DOOR SPEAKER SIGNAL CHECK

1. Connect audio unit connector and BOSE speaker amp. connector.

2. Turn ignition switch ACC.

3. Push “POWER” switch.

4. Check the signal between audio unit harness connector terminals with CONSULT-III or oscilloscope.

Are the audio signal voltage readings as specified? YES >> Replace BOSE speaker amp. Refer to AV-216, "Removal and Installation - Coupe".

NO >> Replace audio unit. Refer to AV-215, "Removal and Installation".
