Nissan Altima Owners Manual: Front manual seat adjustment (if so equipped
Forward and backward
Pull the center of the bar up and hold it while you slide the seat forward or backward to the desired position. Release the bar to lock the seat in position.

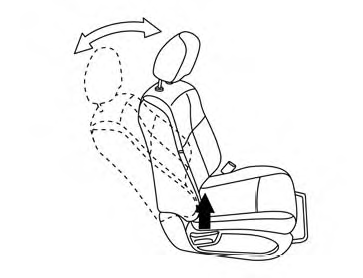

Reclining
To recline the seatback, pull the lever up and lean back. To bring the seatback forward, pull the lever up and lean your body forward. Release the lever to lock the seatback in position.
The reclining feature allows adjustment of the seatback for occupants of different sizes for added comfort and to help obtain proper seat belt fit. See “Precautions on seat belt usage” later in this section. Also, the seatback can be reclined to allow occupants to rest when the vehicle is stopped and the shift lever is in the P (Park) position.
Seat lifter (if so equipped for driver’s seat)
Pull up or push down the adjusting lever to adjust the seat height until the desired position is achieved.
Seats
WARNING
● Do not ride in a moving vehicle when
the seatback is reclined. This can be
dangerous. The shoulder belt will not
be against your body. In an accident,
you could be thrown into i ...
Front power seat adjustment (if so equipped for driver’s seat)
Operating tips
WARNING
Before driving the vehicle, return the seatback
to an upright seating position after
manually releasing it. Also, make sure the
seat is locked in place. Failure to do so
...
