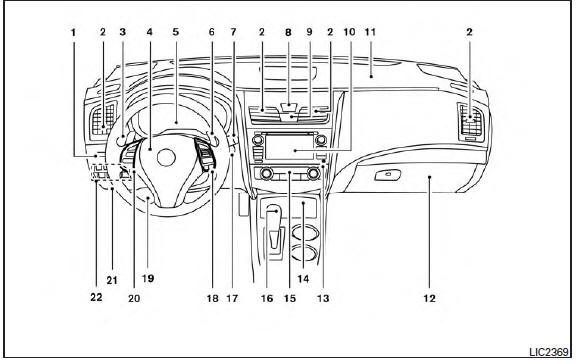

Nissan Altima Owners Manual: Instrument panel
1. Instrument brightness control/Trip computer
reset switch
2. Vents
3. Headlight/fog light (if so equipped)/turn
signal switch
4. Driver supplemental air bag/horn
5. Meters and gauges
6. Paddle shift controls (if so equipped)
7. Windshield wiper/washer switch
8. Hazard warning flasher switch
9. Front passenger air bag status light
10. Audio system controls/Navigation
system*
11. Front passenger supplemental air bag
12. Glove box
13. Aux jack
14. Power outlet/USB port
15. Heater and air conditioner (manual or
automatic)
16. Shift lever
17. Push-button ignition switch
18. Cruise control main/set switch/
Bluetooth® Hands-free Phone System
19. Tilt/telescopic steering wheel controls
20. Steering wheel switch for audio control
/Vehicle information display controls
21. Fuel filler door release/Hood release)
22. Vehicle Dynamic Control OFF switch
Trunk opener
Heated steering wheel switch
(if so equipped)
Warning system switch
(if so equipped)
* Refer to the Navigation System Owner’s manual (if so equipped)
See the page number indicated in parentheses for operating details.
