Nissan Altima (L32) 2007-2012 Service Manual: Oil pump fitting bolt

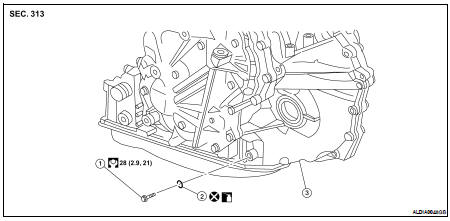

Exploded View

1. Oil pump fitting bolt

2. O-ring

3. CVT assembly

Removal and Installation

Refer to the figure for removal and installation. CAUTION: • Do not reuse O-ring.

• Apply CVT fluid to O-ring.

• After installation is complete, check for CVT fluid leakage and CVT fluid level. Refer to TM-416, "Inspection".
