Nissan Altima 2007-2012 Service Manual: Service data and specifications (SDS)

General Specification

CAUTION: • Use only Genuine NISSAN CVT Fluid NS-2. Do not mix with other fluid.

• Using CVT fluid other than Genuine NISSAN CVT Fluid NS-2 will deteriorate in driveability and CVT durability, and may damage the CVT, which is not covered by the warranty.

*1: Refer to MA-12, "Fluids and Lubricants".

Vehicle Speed When Shifting Gears

Numerical value data are reference values.

CAUTION: Lock-up clutch is engaged when vehicle speed is approximately 18 km/h (11 MPH) to 90 km/h (56 MPH).

Stall Speed

Line Pressure

*1: Reference values

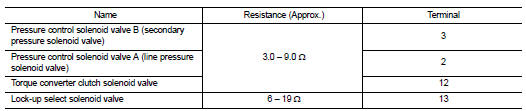

Solenoid Valves

CVT Fluid Temperature Sensor

Primary Speed Sensor

Secondary Speed Sensor

Removal and Installation

    Removal and installation
    TRANSAXLE ASSEMBLY Exploded View 1. Rear gusset 2. Air breather hose 3. CVT fluid level gauge 4. CVT fluid charging pipe 5. O-ring 6. Copper washer 7. Fluid cooler tube 8. Transaxle assem ...
