Nissan Altima Owners Manual: Air flow charts

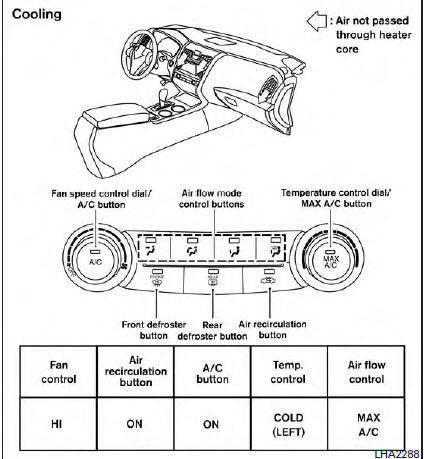

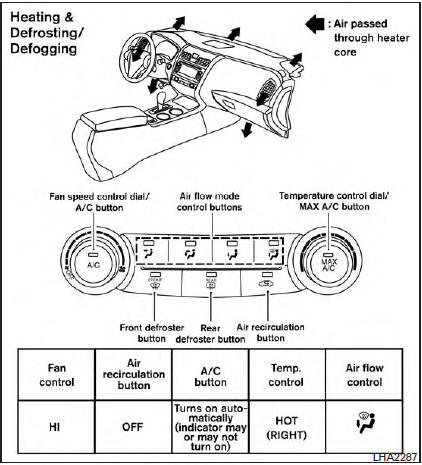

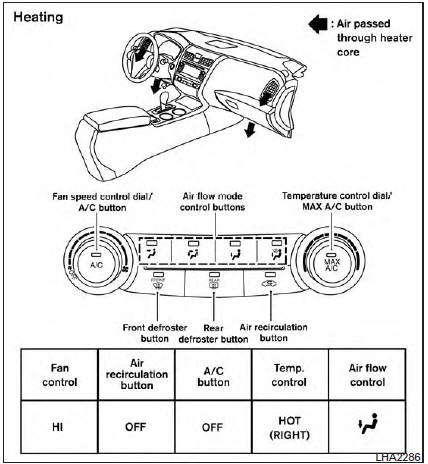

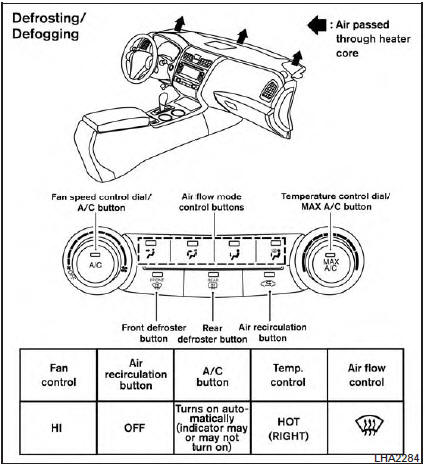

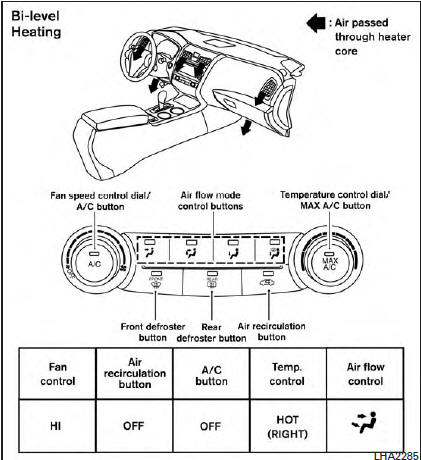

The following charts show the button and dial positions for MAXIMUM AND QUICK heating, cooling or defrosting. The air recirculation button should always be in the OFF position for heating and defrosting.





Heater and Air Conditioner (automatic) (if so equipped)


    Air conditioner operation
    Start the engine, turn the fan control dial to the desired position, and press the button to activate the air conditioner. When the air conditioner is on, cooling and dehumidifying functions ar ...

    Heater and Air Conditioner (automatic) (if so equipped)
    1. (front defroster) button 2. Temperature control dial (driver’s side)/ AUTO (automatic) climate control button 3. Display screen 4. Temperature control dial (passenger’s side)/DUAL (pass ...
