Nissan Altima (L32) 2007-2012 Service Manual: Fender protector

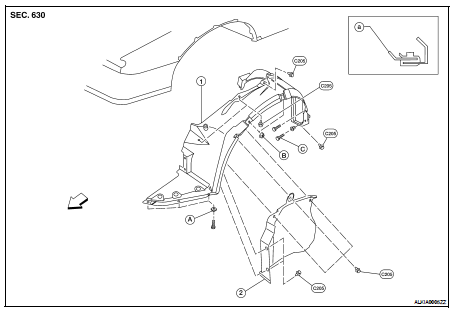

Removal and Installation

1. Fender protector

2. Fender protector side cover

A. J-clips

B. Clips

C. Center mudguard screw

a. Sheet metal nut

REMOVAL

1. Remove the engine under cover. Refer to EXT-34, "Removal and Installation".

2. Remove the screw from center mudguard.

3. Remove the fender protector screws and clips.

4. Remove the fender protector.

INSTALLATION

Installation is in the reverse order of removal.
