Nissan Altima Owners Manual: Air bags, seat belts and child restraints

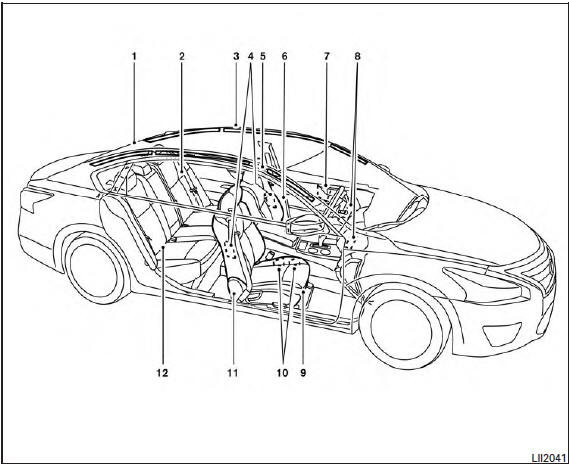

1. Top tether strap anchor


1. Top tether strap anchor 2. Rear seat belts
3. Roof-mounted curtain side-impact supplemental air bag
4. Front seat-mounted side-impact supplemental air bag
5. Head restraints/headrests 6. Front seat belts
7. Side-impact pressure sensor (driver’s side shown; passenger’s side similar) 8. Supplemental front-impact air bags 9. Seats
10. Occupant classification sensor (weight sensor)
11. Seat belt with pretensioner 12. LATCH (Lower Anchors and Tethers for CHildren) system

See the page number indicated in parentheses for operating details.

    Exterior front
    1. Power windows 2. Windshield 3. Windshield wiper and washer switch 4. Engine hood 5. Tie down 6. Fog light switch (if so equipped) 7. Headlight and turn signal switch 8. Replacing bulbs ...
