Nissan Altima 2007-2012 Service Manual: Air cleaner filter

Removal and Installation

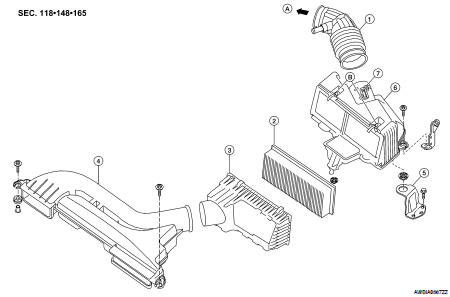

1. Air duct hose


1. Air duct hose

2. Air cleaner filter

3. Air cleaner case (front)

4. Front air duct

5. Air cleaner mounting bracket

6. Air cleaner case (rear)

7. Mass air flow sensor

A. To electric throttle control actuator

B. Air cleaner case side clips

CHANGING THE AIR CLEANER FILTER

CAUTION: It is not necessary to remove the front air duct to replace the air cleaner element.

1. Unhook the air cleaner case side clips.

2. Remove the air cleaner filter.

3. Install a new air cleaner filter.

4. Lock the air cleaner case side clips.
