Nissan Altima 2007-2012 Service Manual: BCM (Body control module)

Reference Value

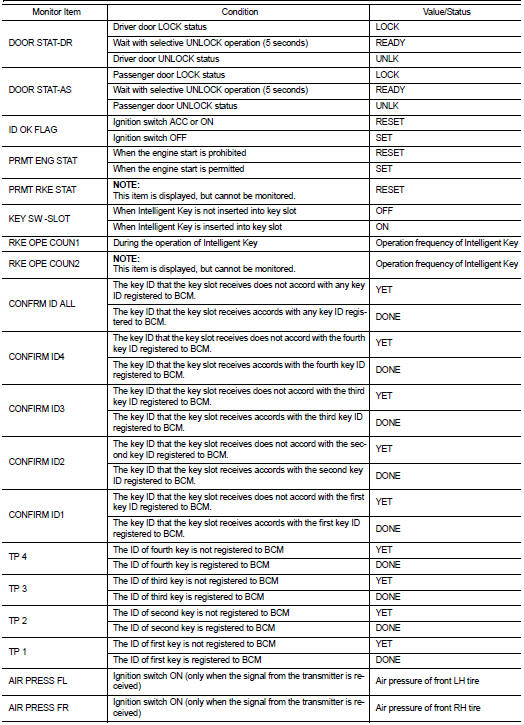

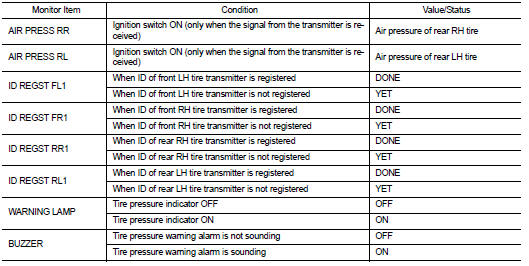

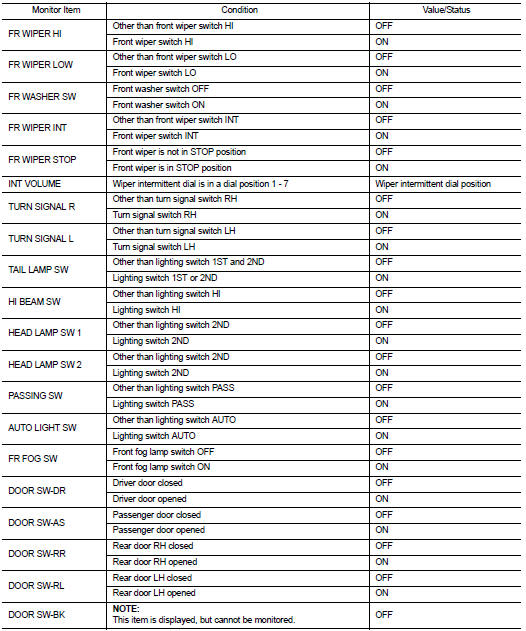

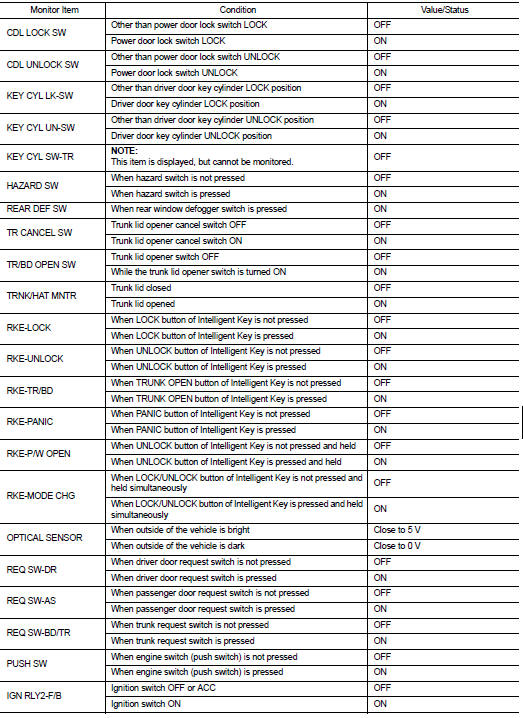

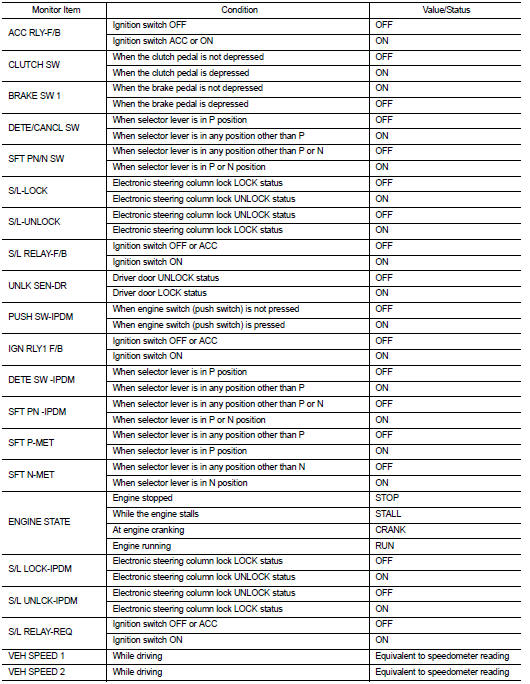

VALUES ON THE DIAGNOSIS TOOL

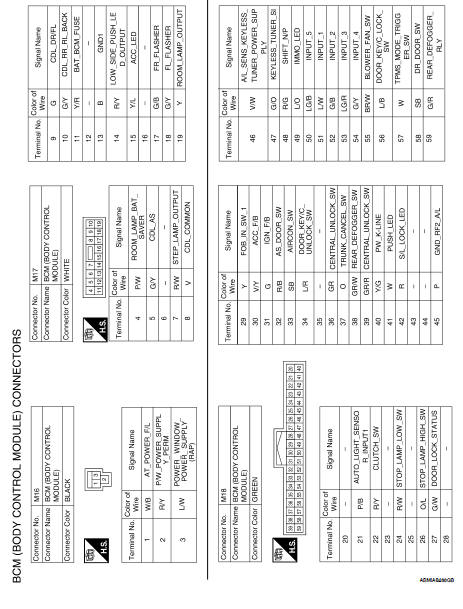

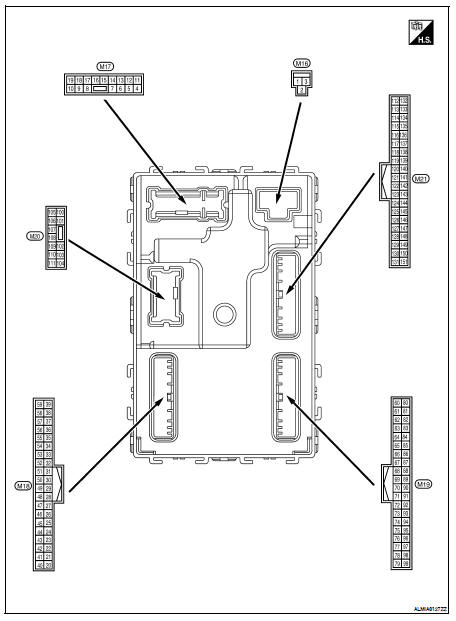

Terminal Layout

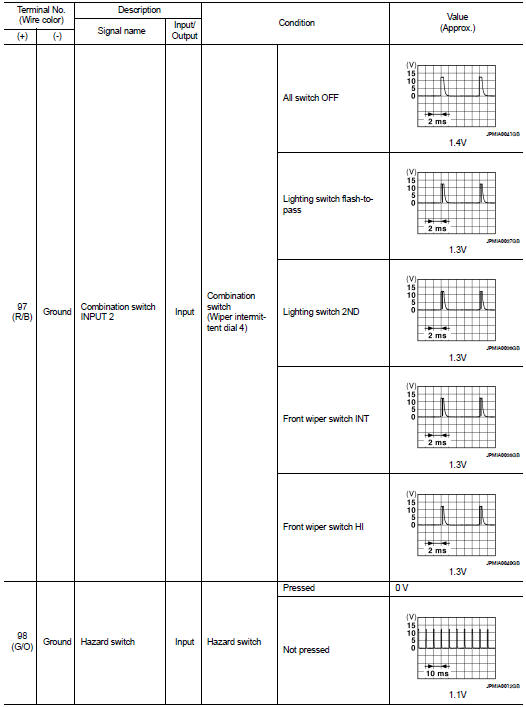

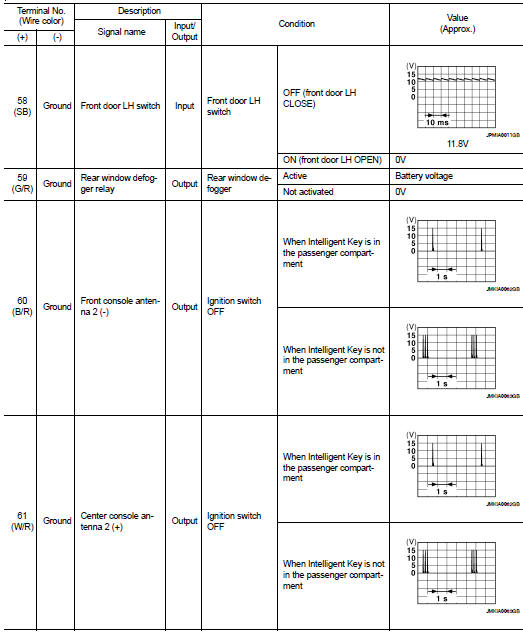

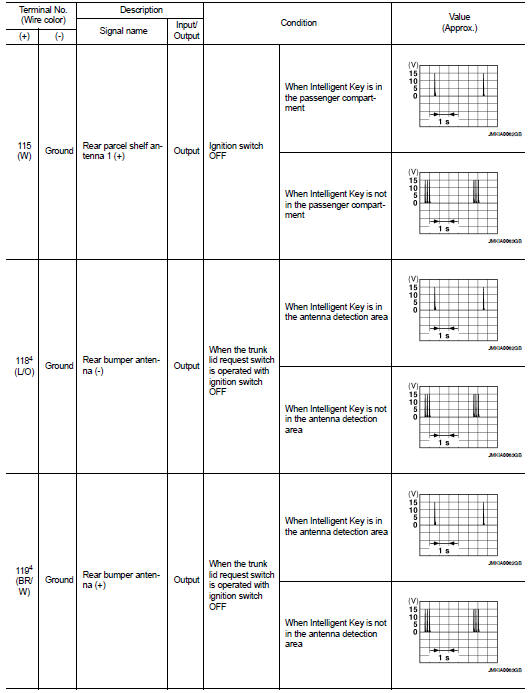

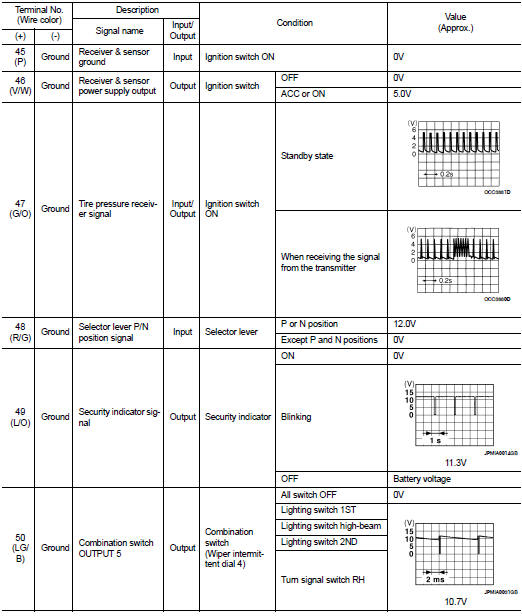

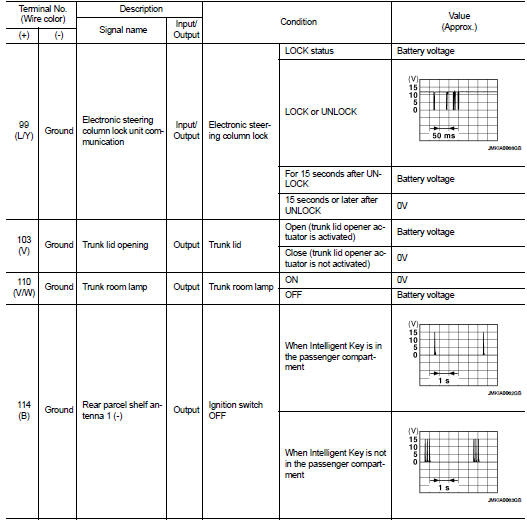

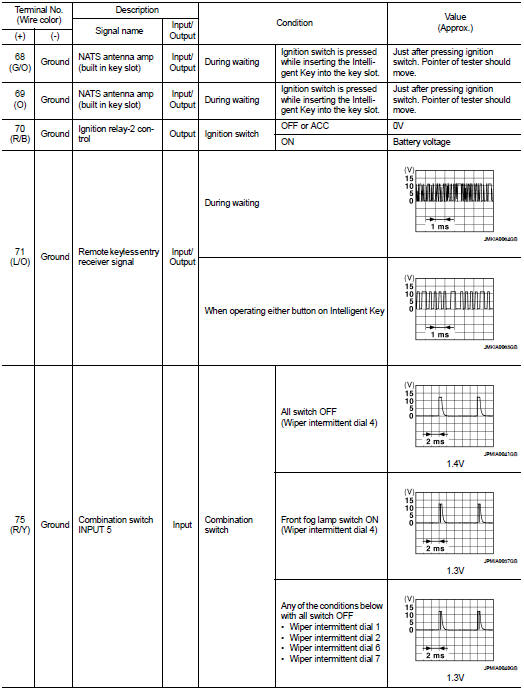

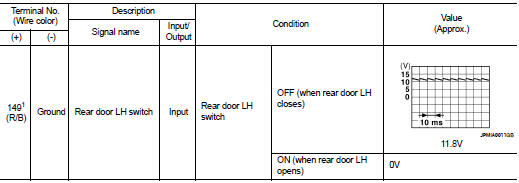

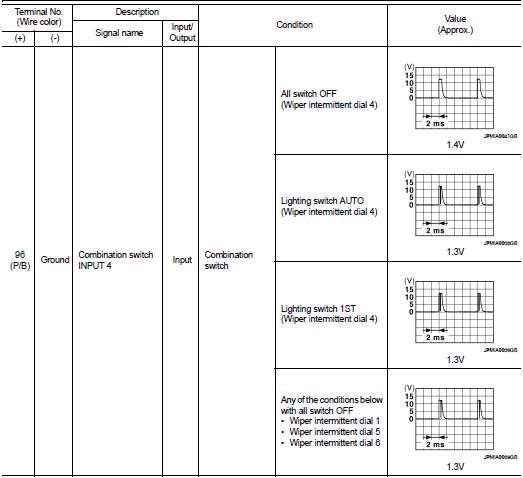

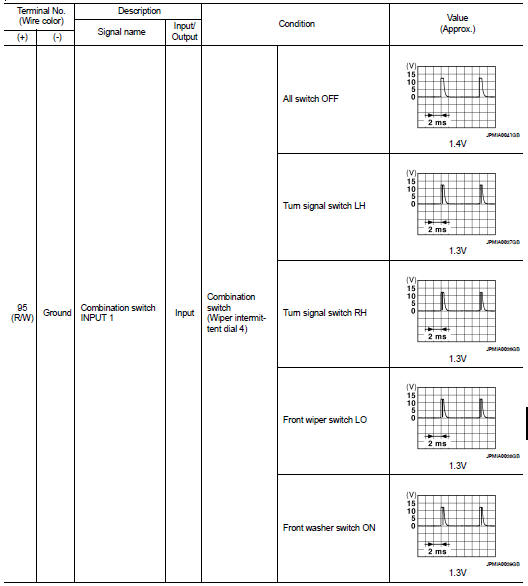

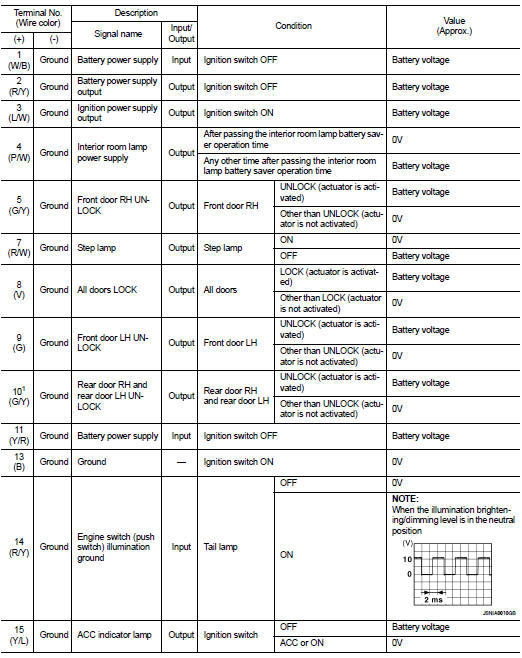

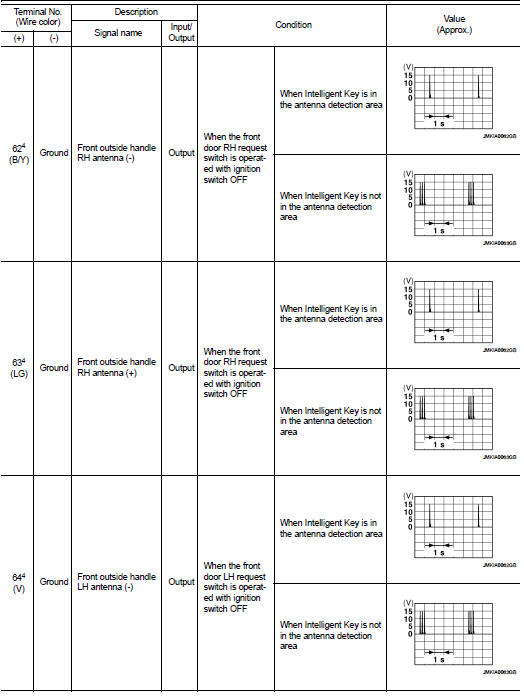

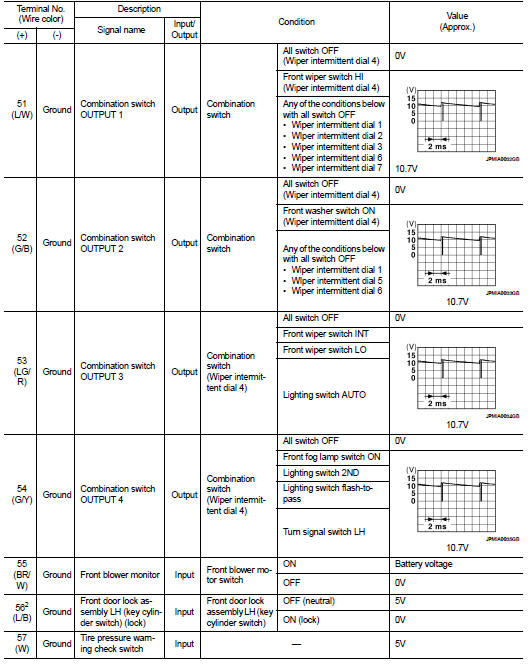

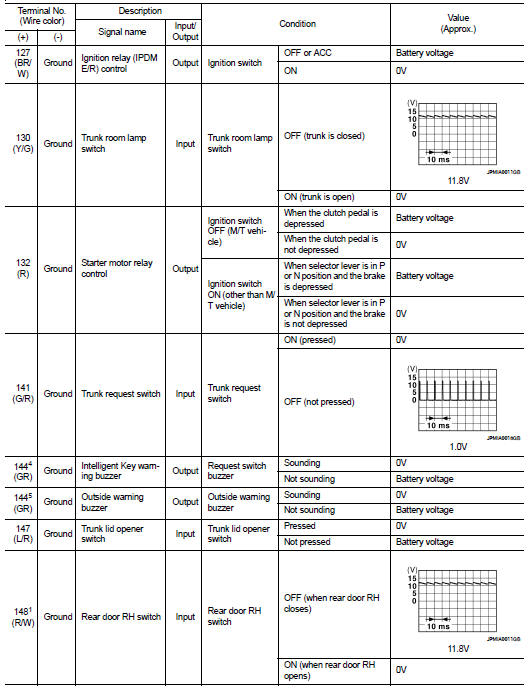

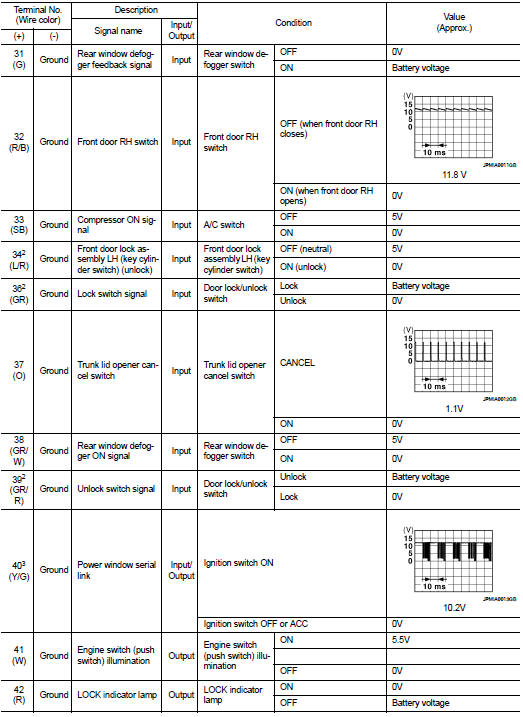

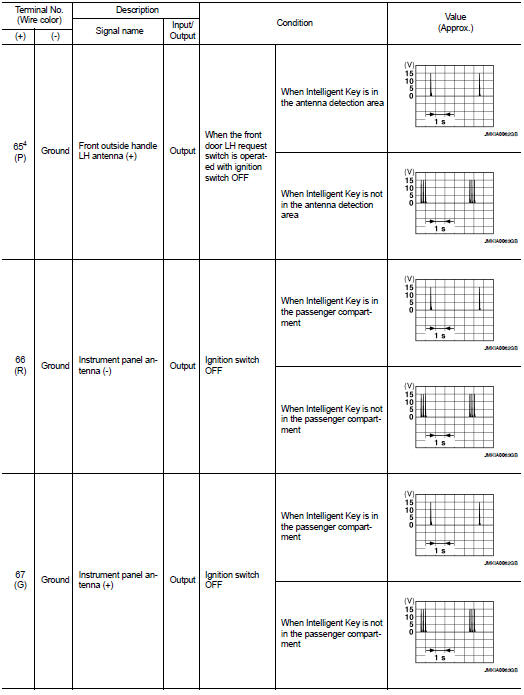

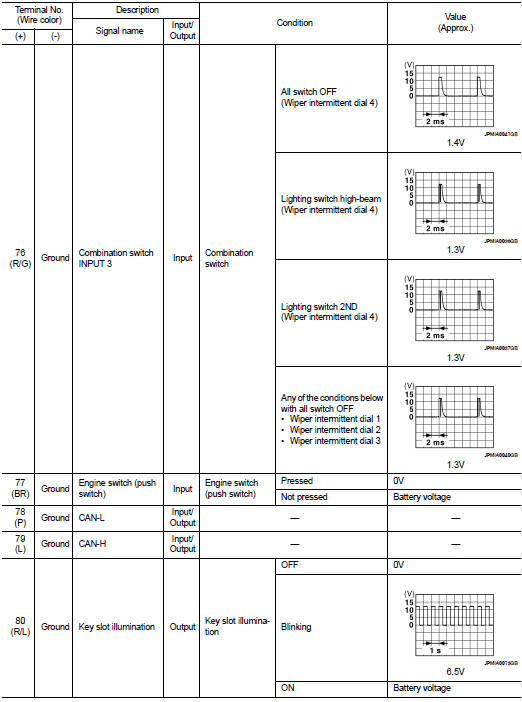

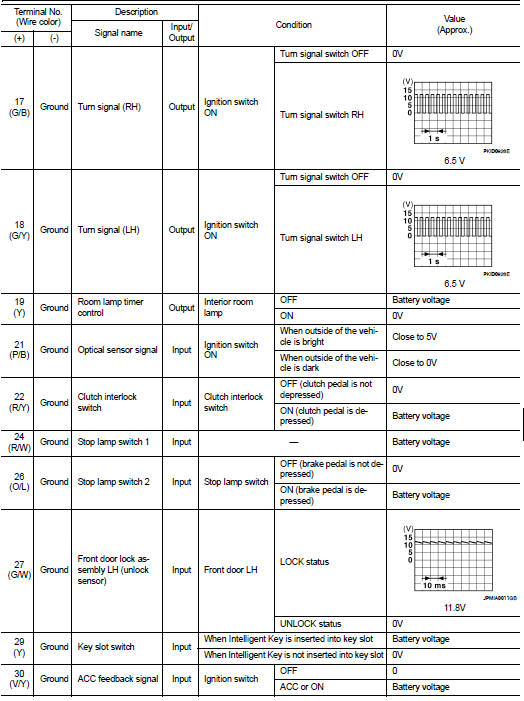

Physical Values

1: Sedan only

2: With LH front window anti-pinch

3: With LH and RH front window anti-pinch

4: With Intelligent Key

5: Without Intelligent Key

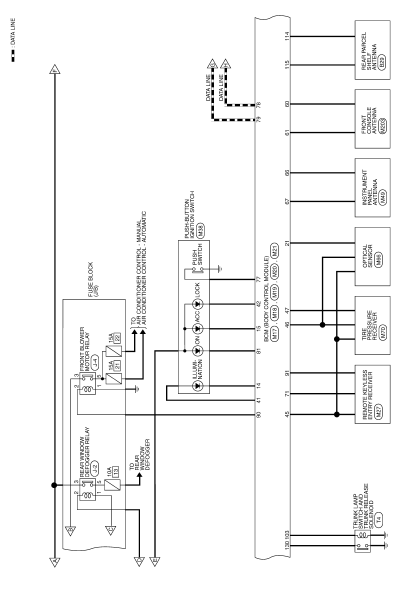

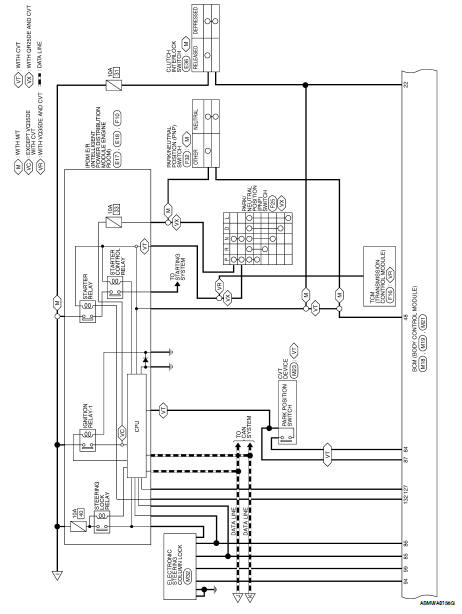

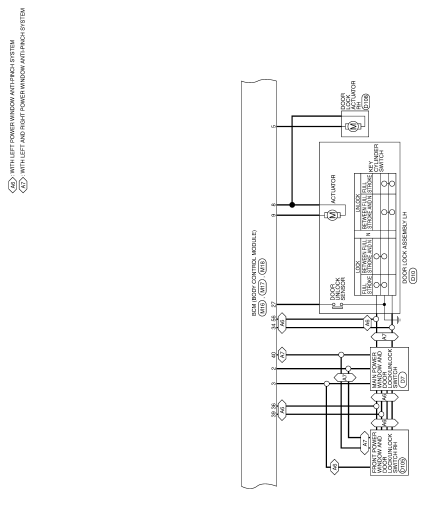

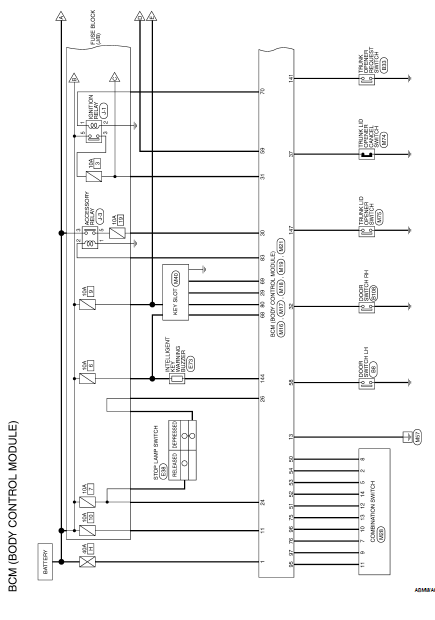

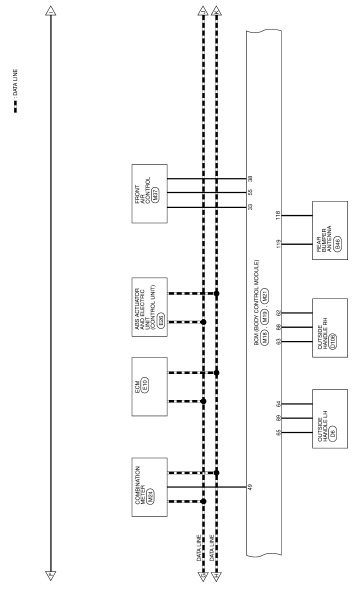

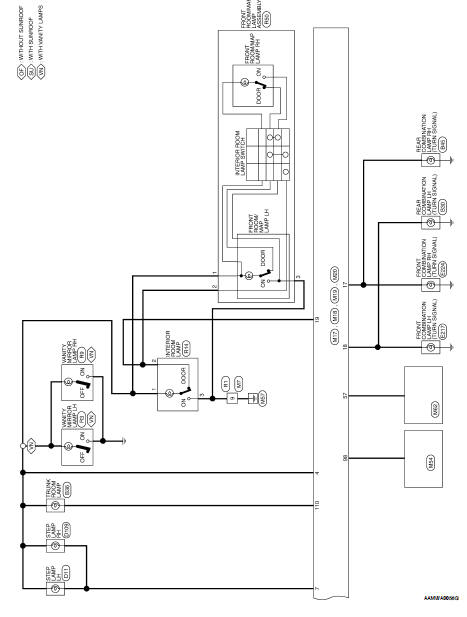

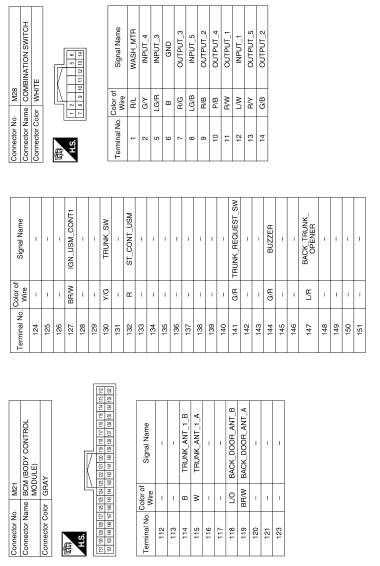

Wiring Diagram-Coupe

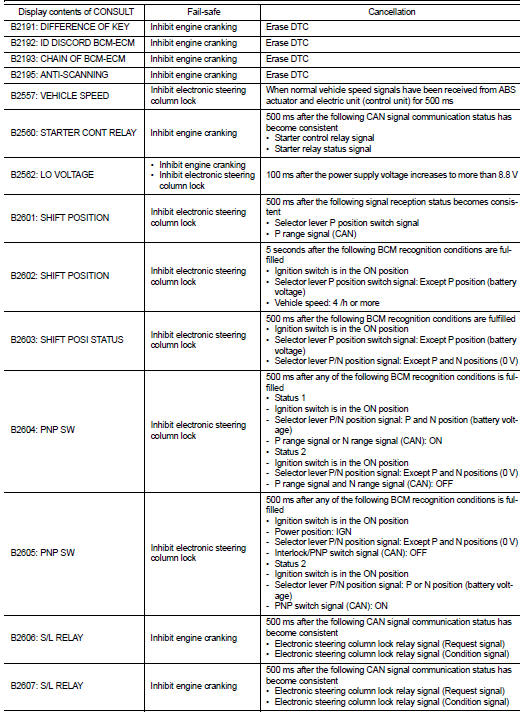

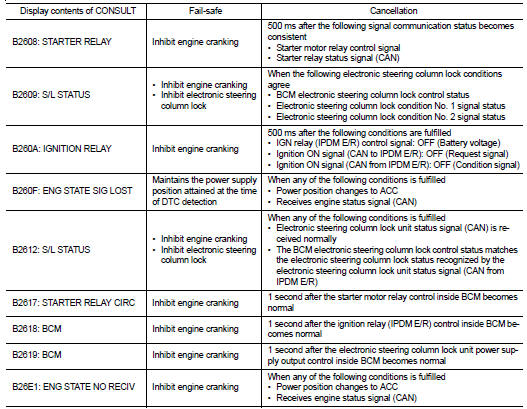

Fail Safe

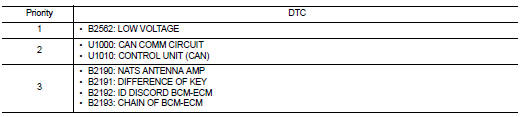

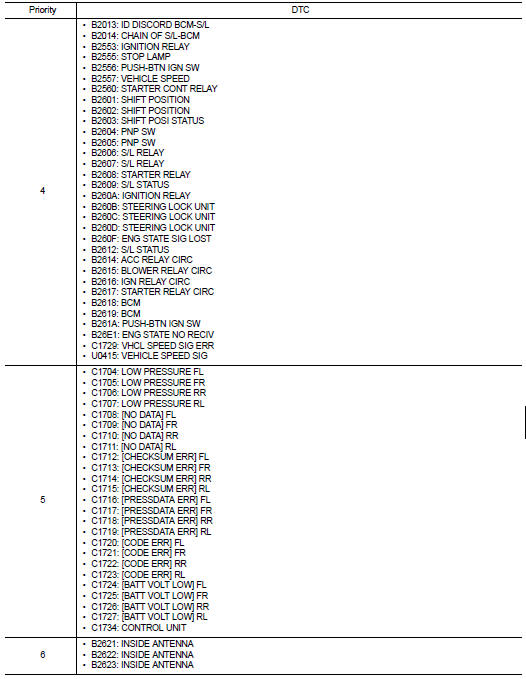

DTC Inspection Priority Chart

If some DTCs are displayed at the same time, perform inspections one by one based on the following priority chart.

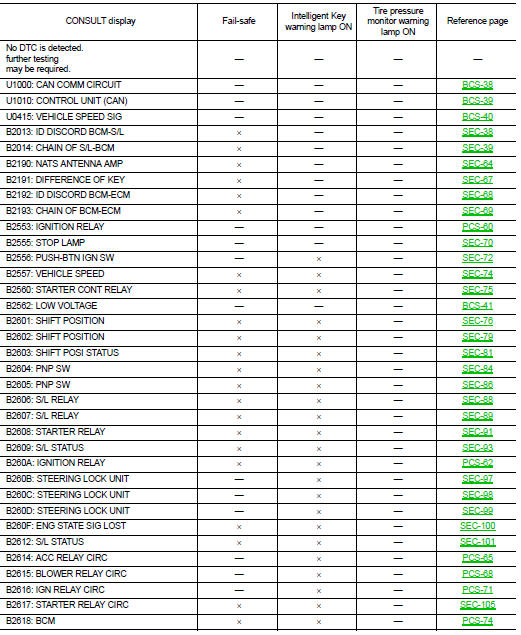

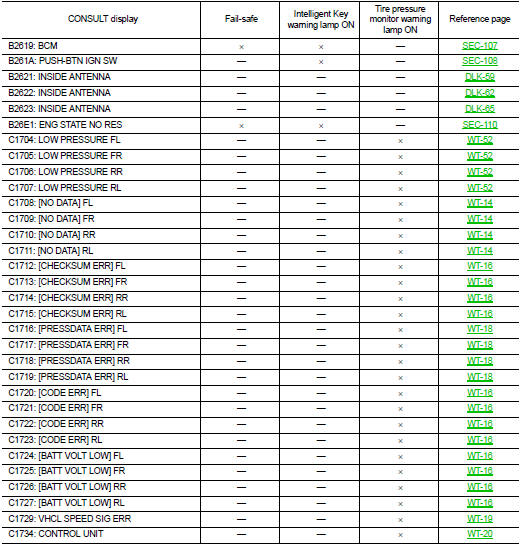

DTC Index

Details of time display

• CRNT: Displays when there is a malfunction now or after returning to the normal condition until turning ignition switch OFF → ON again.

• 1 - 39: Displayed if any previous malfunction is present when current condition is normal. It increases like 1 → 2 → 3...38 → 39 after returning to the normal condition whenever ignition switch OFF → ON. The counter remains at 39 even if the number of cycles exceeds it. It is counted from 1 again when turning ignition switch OFF → ON after returning to the normal condition if the malfunction is detected again.
