Nissan Altima 2007-2012 Service Manual: Heater core

Removal and Installation

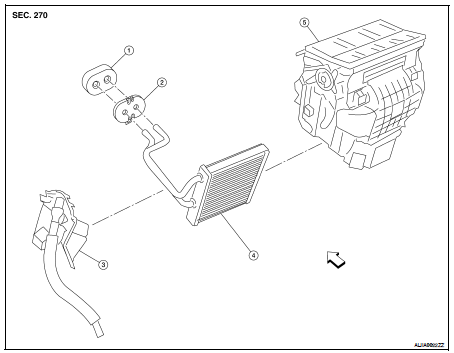

COMPONENTS

1. Heater grommet

2. Heater pipe support

3. Heater and cooling unit foot duct LH

4. Heater core

5. Heater and cooling unit case

REMOVAL

1. Remove the heater and cooling unit assembly. Refer to VTL-12, "Removal and Installation".

2. Remove the heater grommet, heater pipe support and heater pipe cover.

3. Remove the heater and cooling unit foot duct LH.

4. Remove the heater core.

INSTALLATION

Installation is in the reverse order of removal.

• Make sure that the aspirator hose is securely attached to the aspirator on the heater and cooling unit foot duct LH.
