Nissan Altima 2007-2012 Service Manual: P0460 fuel level sensor

Description

The fuel level sensor is mounted in the fuel level sensor unit.

The sensor detects a fuel level in the fuel tank and transmits a signal to the combination meter. The combination meter sends the fuel level sensor signal to the ECM through CAN communication line.

It consists of two parts, one is mechanical float and the other is variable resistor. Fuel level sensor output voltage changes depending on the movement of the fuel mechanical float.

DTC Logic

DTC DETECTION LOGIC

NOTE: • If DTC P0460 is displayed with DTC UXXXX, first perform the trouble diagnosis for DTC UXXXX.

• If DTC P0460 is displayed with DTC P0607, first perform the trouble diagnosis for DTC P0607. Refer to EC-361, "DTC Logic".

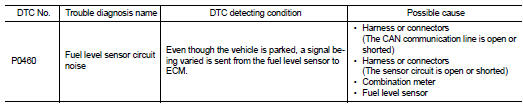

When the vehicle is parked, naturally the fuel level in the fuel tank is stable. It means that output signal of the fuel level sensor does not change. If ECM senses sloshing signal from the sensor, fuel level sensor malfunction is detected.

DTC CONFIRMATION PROCEDURE


DTC CONFIRMATION PROCEDURE

1.PRECONDITIONING

If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at least 10 seconds before conducting the next test.

>> GO TO 2.

2.PERFORM DTC CONFIRMATION PROCEDURE

1. Start engine and wait maximum of 2 consecutive minutes.

2. Check 1st trip DTC.

Is 1st trip DTC detected? YES >> Go to EC-343, "Diagnosis Procedure".

NO >> INSPECTION END

Diagnosis Procedure

1.CHECK COMBINATION METER FUNCTION

Refer to MWI-46, "Component Function Check".

Is the inspection result normal? YES >> GO TO 2.

NO >> Go to EC-343, "Diagnosis Procedure".

2.CHECK INTERMITTENT INCIDENT

Refer to GI-42, "Intermittent Incident".

>> INSPECTION END
