Nissan Altima 2007-2012 Service Manual: Preparation

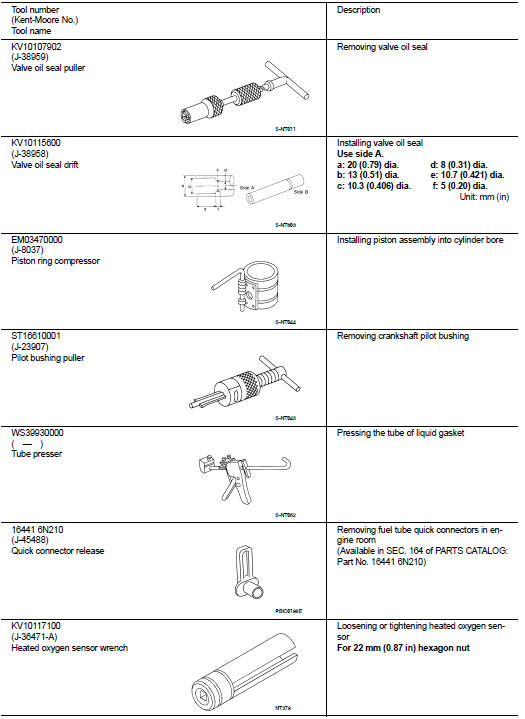

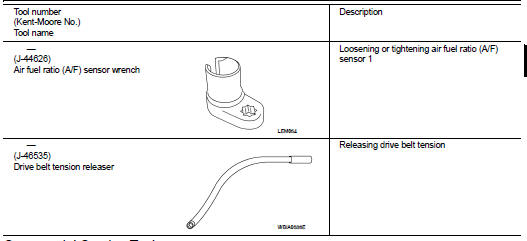

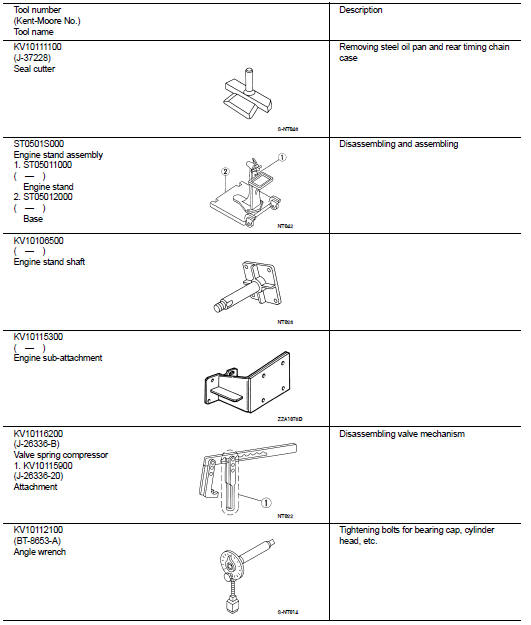

Special Service Tool

The actual shapes of the Kent-Moore tools may differ from those of the special service tools illustrated here.

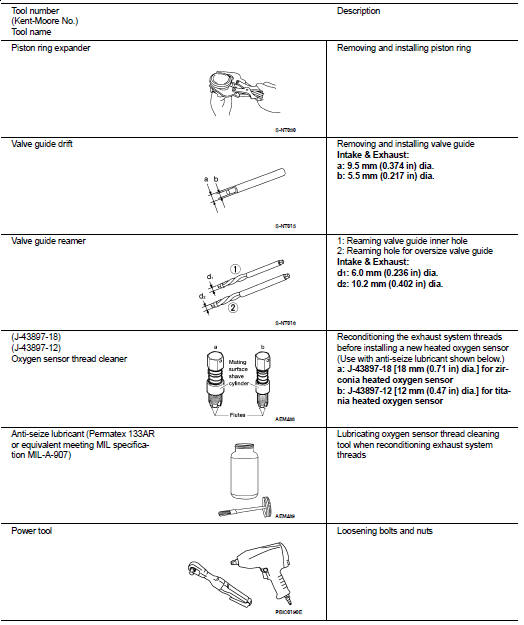

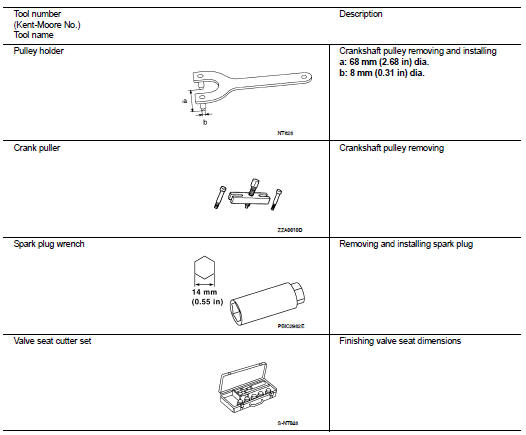

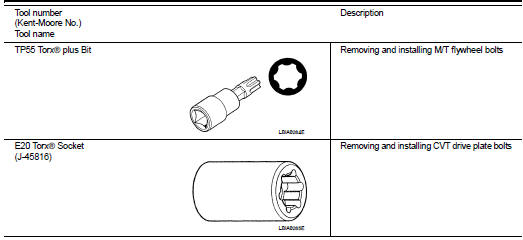

Commercial Service Tool


Commercial Service Tool
